Introduction to EMT Chemical Injection Quills Nozzles
Chemical injection quills are critical components in industrial process systems, allowing for the precise introduction of chemicals, inhibitors, or reagents directly into pipelines or vessels. EMT offers a comprehensive range of Chemical Injection Quills designed to meet the diverse needs of industries such as oil & gas, petrochemical, water treatment, and power generation.

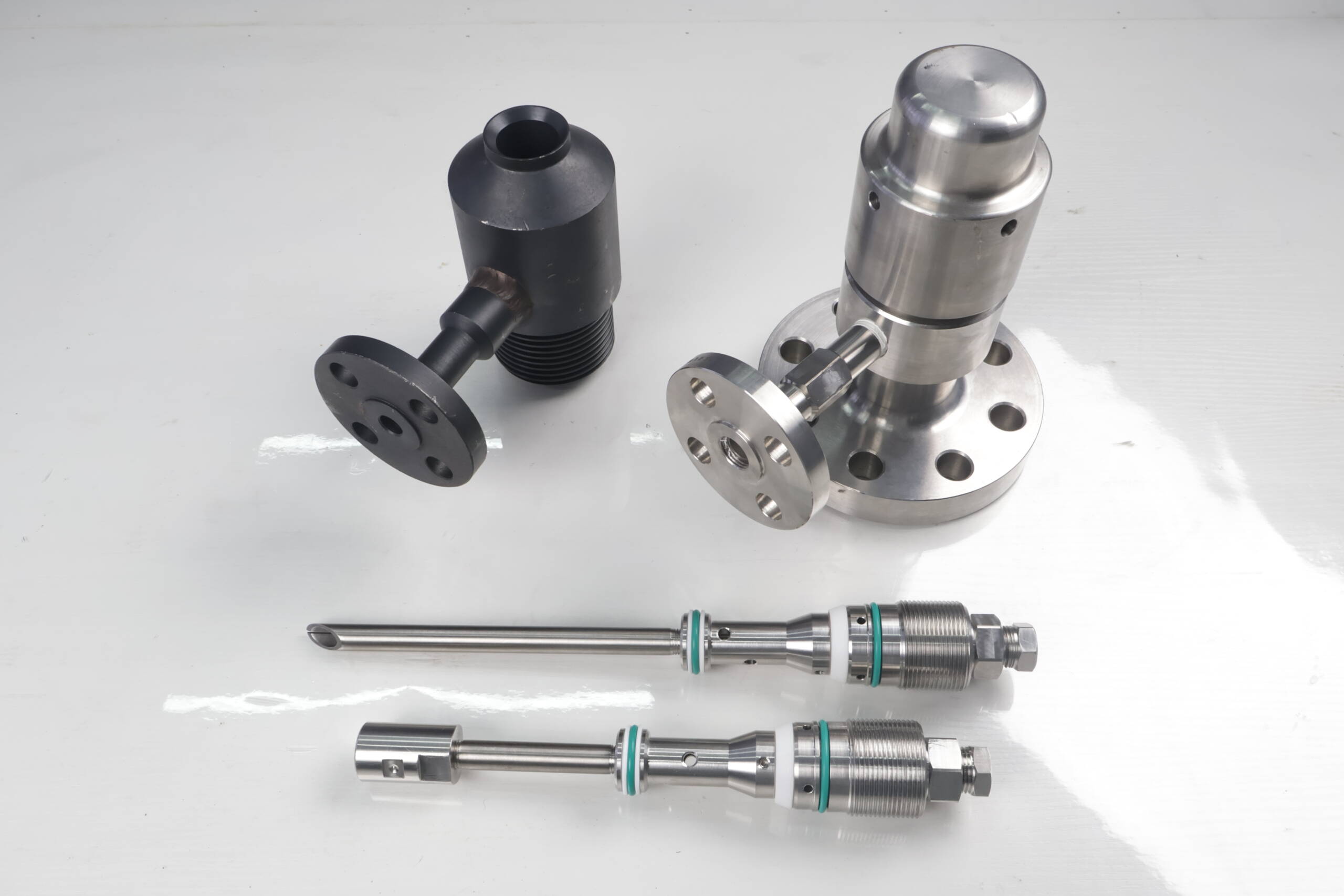

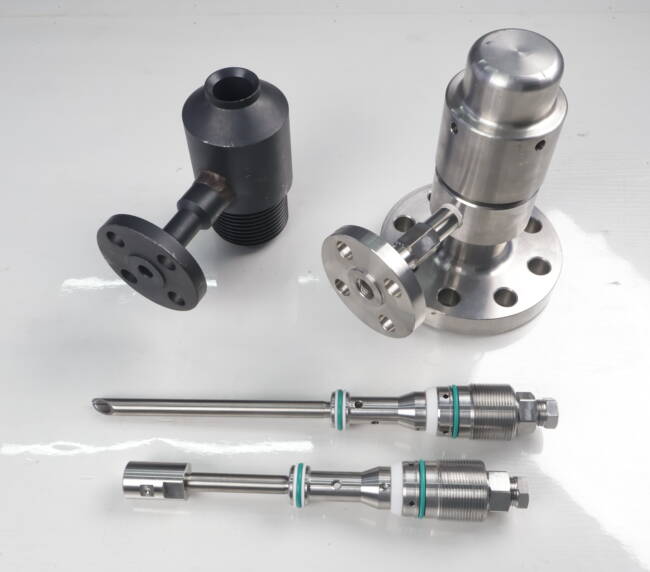

Our product line includes mechanical, hydraulic, and retractable injection quills, available with Chemical Injection Quills Nozzles types, connections, and pressure ratings.

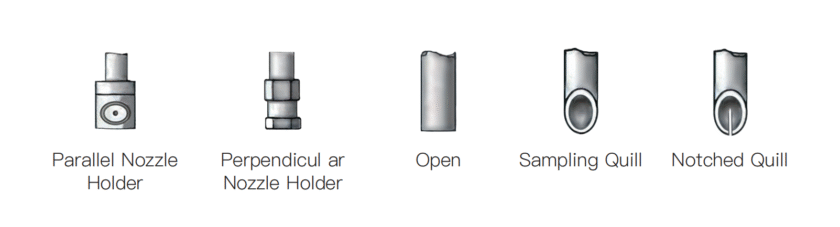

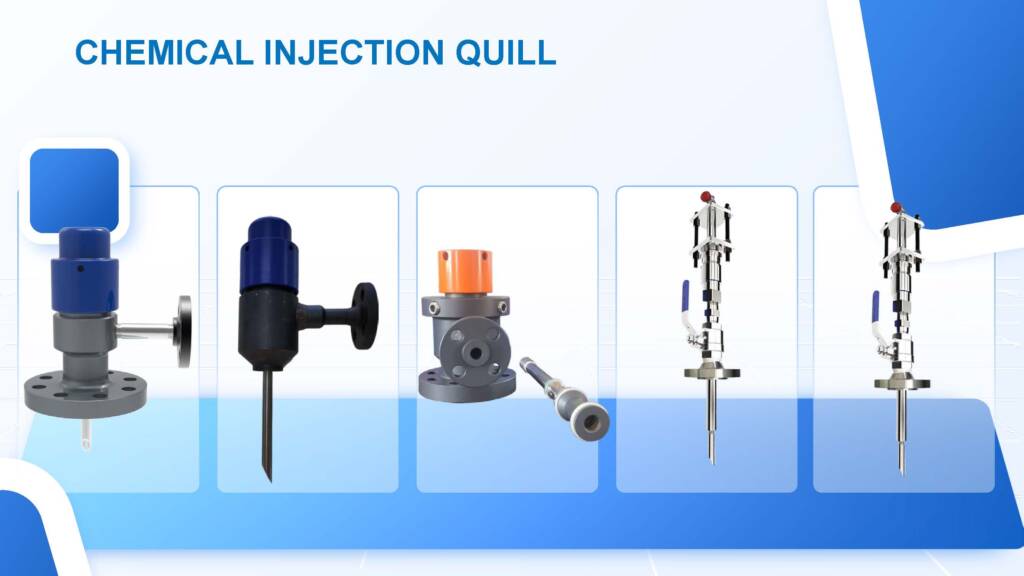

Types of Chemical Injection Quills Nozzles

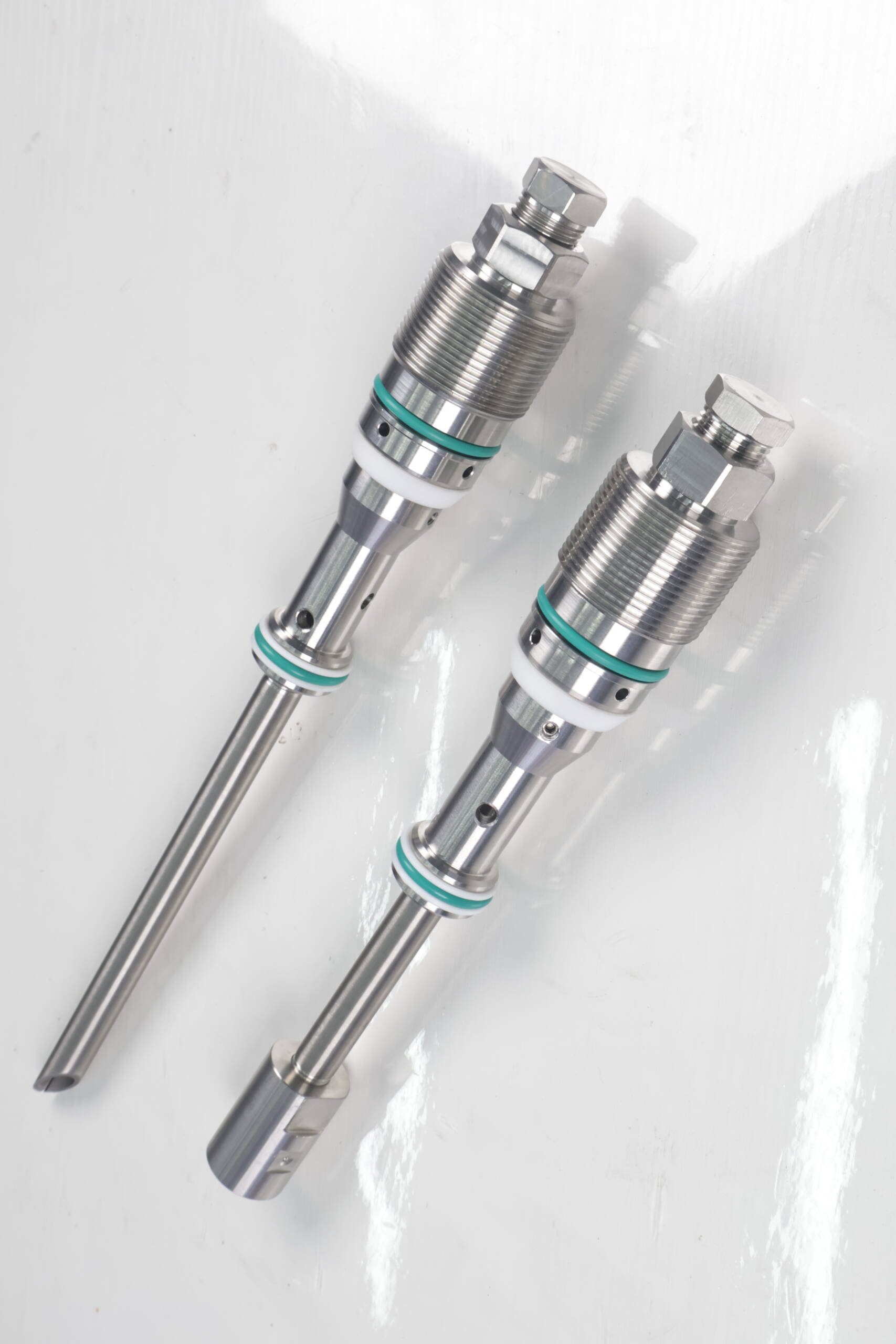

1. EMT Mechanical Injection Quill (1” NPT Welded)
- Connection Type: 1” NPT Welded
- Nozzle Type: Parallel Nozzle Holder
- Design Temperature: -20°C to 150°C
- Design Pressure: Up to 6000 PSI
This standard mechanical quill is ideal for general-purpose applications. It comes with a compact design and threaded NPT connection for easy integration into pipelines.

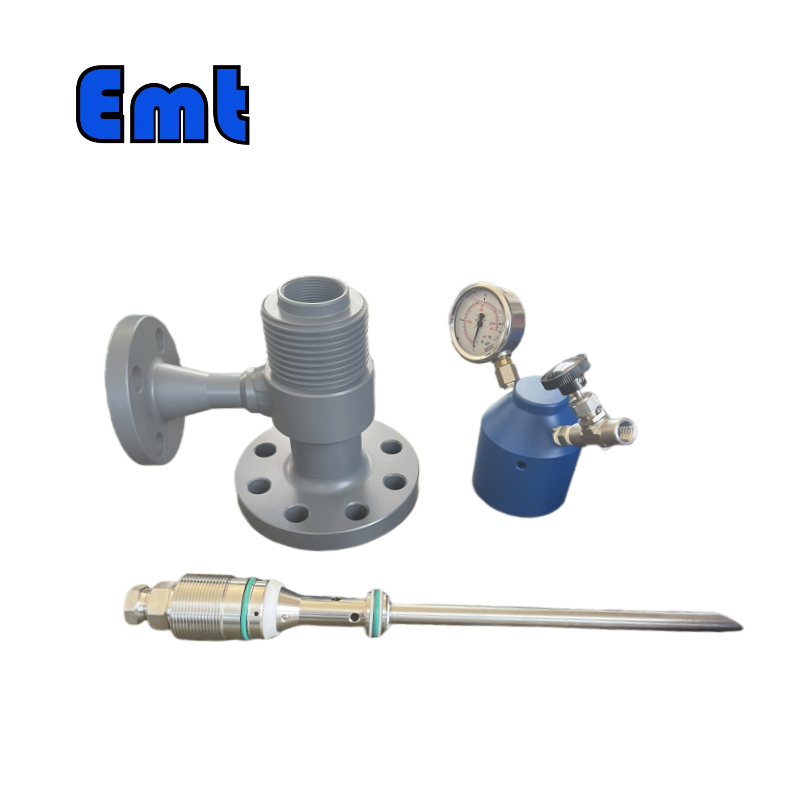

2. EMT Mechanical Injection Quill (2” ANSI Flange)
- Connection Type: 2” ANSI Flanged
- Nozzle Type: Perpendicular Nozzle Holder
- Design Temperature: -20°C to 150°C
- Design Pressure: Available in 150LB to 2500LB ratings
Designed for higher flow or pressure applications, this flanged variant provides enhanced sealing and stability. The perpendicular nozzle holder allows for effective mixing and injection.
3. EMT Hydraulic Injection Quill
- Connection Type: 1” or 2” Welded / 2” ANSI Flange
- Nozzle Type: Open Nozzle
- Design Temperature: -20°C to 150°C
- Design Pressure: Up to 10,000 PSI
Optimized for high-pressure applications, EMT’s hydraulic injection quill enables precise chemical injection using hydraulic actuation. The open nozzle design ensures consistent fluid delivery into the process stream.
4. EMT Retractable Injection Quill (1” NPT Welded)
- Connection Type: 1” NPT Welded
- Nozzle Type: Sampling Quill
- Design Temperature: -20°C to 150°C
- Design Pressure: Up to 6000 PSI
This retractable model allows for safe insertion and removal without process shutdown. It features a sampling-style nozzle ideal for injecting or withdrawing fluids for analysis.
5. EMT Retractable Injection Quill (2” ANSI Flange)
- Connection Type: 2” ANSI Flanged
- Nozzle Type: Notched Quill
- Design Temperature: -20°C to 150°C
- Design Pressure: 150LB to 2500LB
With a robust flanged connection and a notched quill design, this model is suited for continuous or batch chemical dosing. Its retractable feature enhances safety during maintenance in pressurized systems.
Why Choose EMT Injection Quills?
- Versatile Designs for welded or flanged connections
- Multiple Nozzle Types for various injection needs
- High Pressure Ratings up to 10,000 PSI
- Wide Compatibility across corrosive media and extreme temperatures
- Retractable Options for live system maintenance
Whether you’re handling corrosion inhibitors, scale dispersants, or biocides, EMT’s chemical injection quills deliver reliable performance, safety, and precision.
