Description

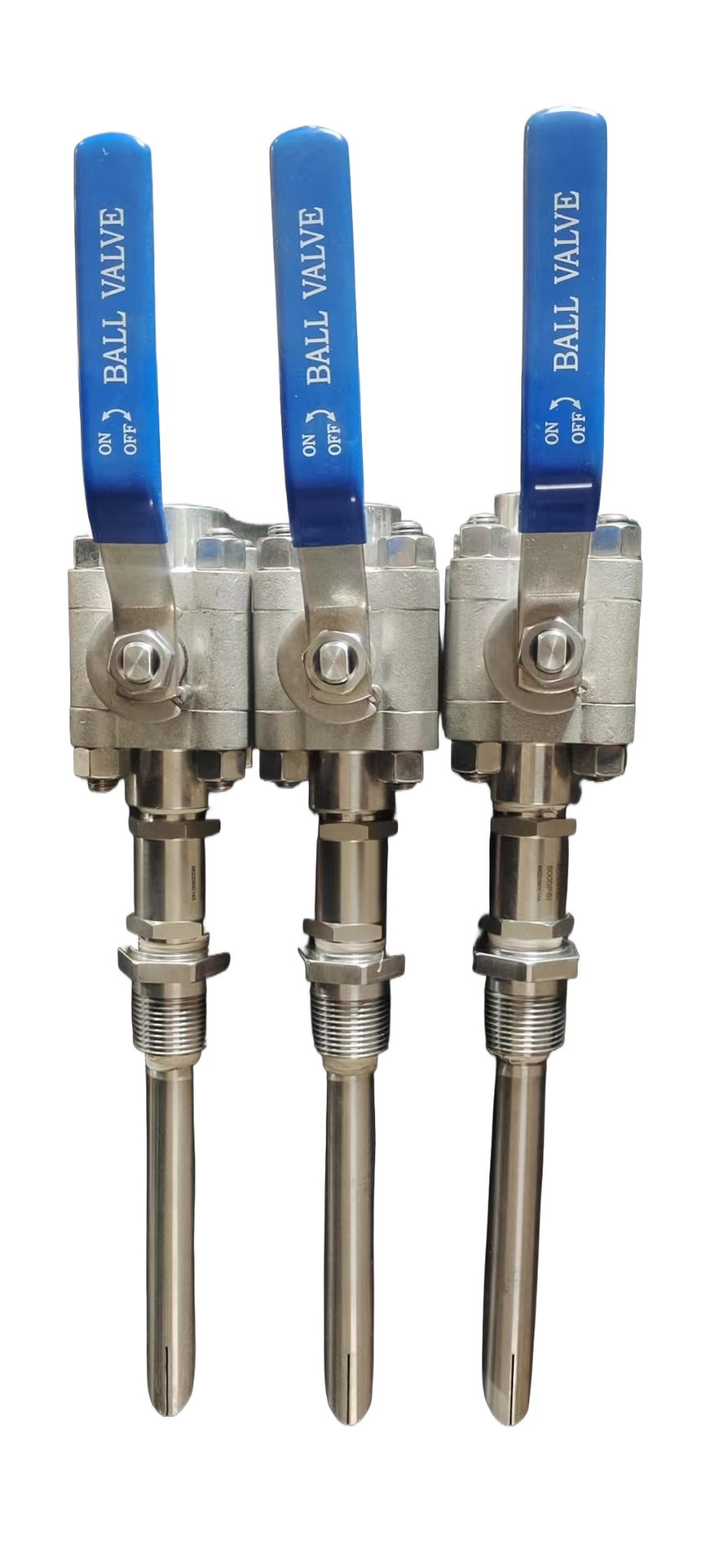

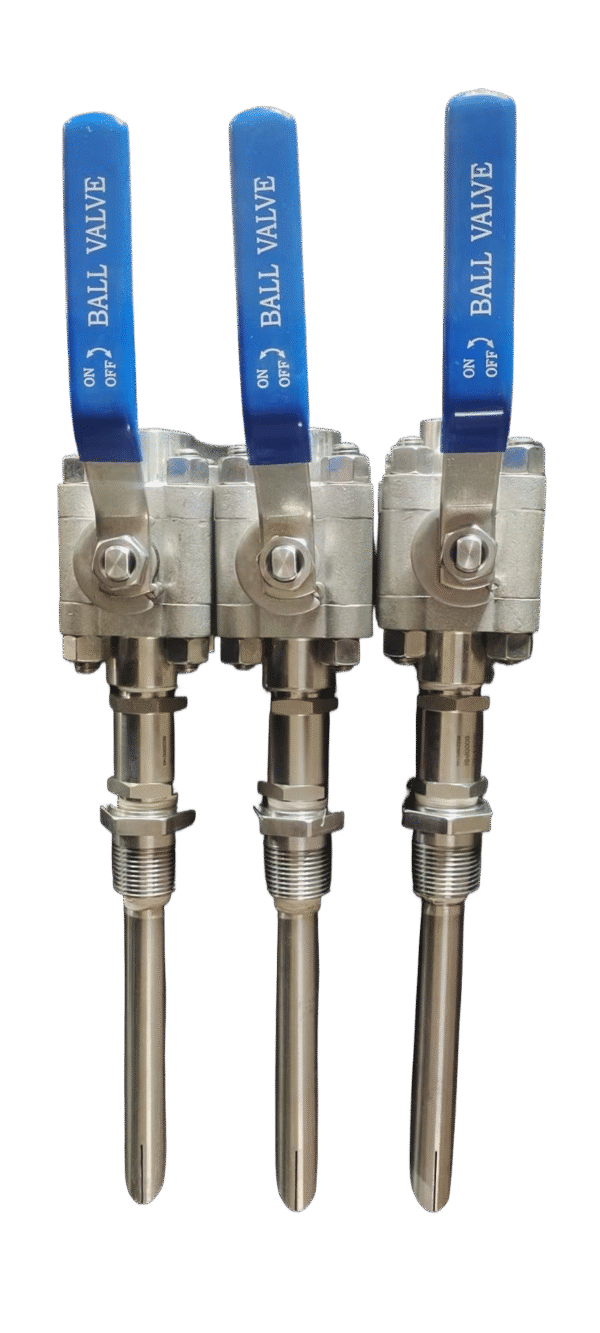

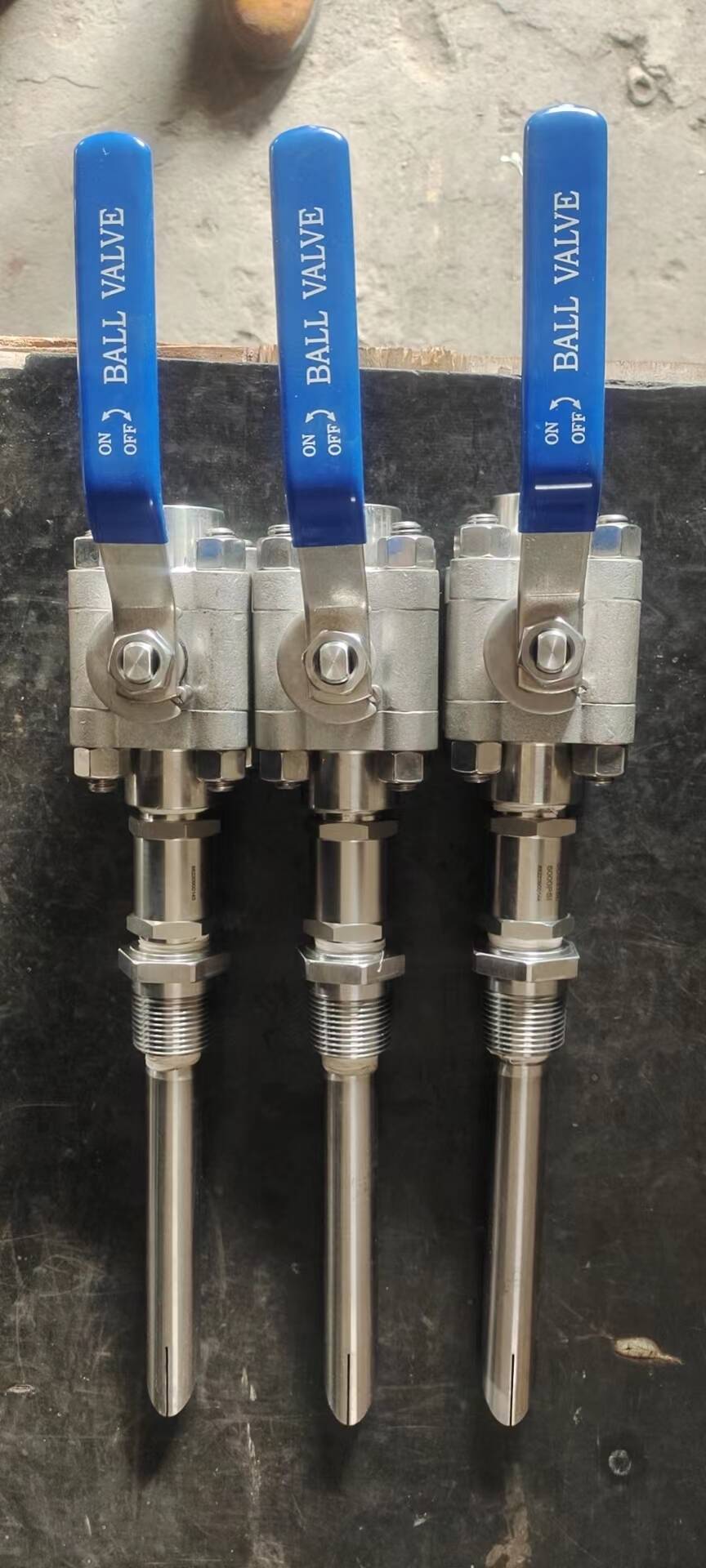

The fixed type chemical injection quill introduces a wide range of chemicals—such as corrosion inhibitors, bactericides, oxygen scavengers, wax inhibitors, scale inhibitors, pH stabilizers, and other treatment chemicals—directly into the process stream. Based on the specific application, users classify these systems into two main types: fixed type and retractable/retrievable type. In addition, engineers select either a standard nozzle or a spray nozzle for the quill, depending on the pipeline conditions and the chemical properties, to ensure optimal dispersion and effective chemical treatment.
TECHNICAL SPECIFICATION & CAPABILITIES
Material of Construction
SS316, Alloy 20, Hastelloy, CPVC (custom materials available)
EMT Company manufactures the Fixed Type Chemical Injection Quill as a high-performance solution that delivers precise and efficient chemical injection into process streams. The company uses a range of high-quality materials. SS316, Alloy 20, Hastelloy, and CPVC—and also offers custom materials upon request to meet specific application requirements.
Quill Diameter
Available from ½” to 2” MNPT (custom sizes on request)
The quill is available in diameters ranging from ½” to 2” MNPT, and custom sizes can be provided to meet unique system needs. It is engineered to withstand pressure ratings of up to 300 psi. Therefore it is suitable for a wide variety of industrial applications. Additionally, it is designed to operate reliably in high-temperature environments, with a temperature rating of up to 500°F.
Pressure Rating
Up to 300 psi Temperature Rating Up to 500°F

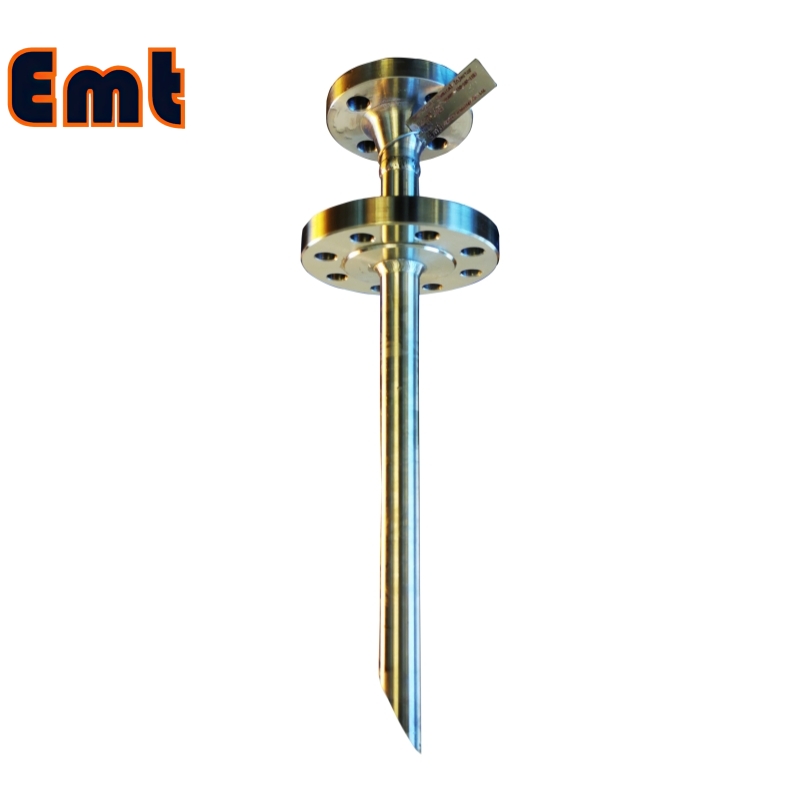

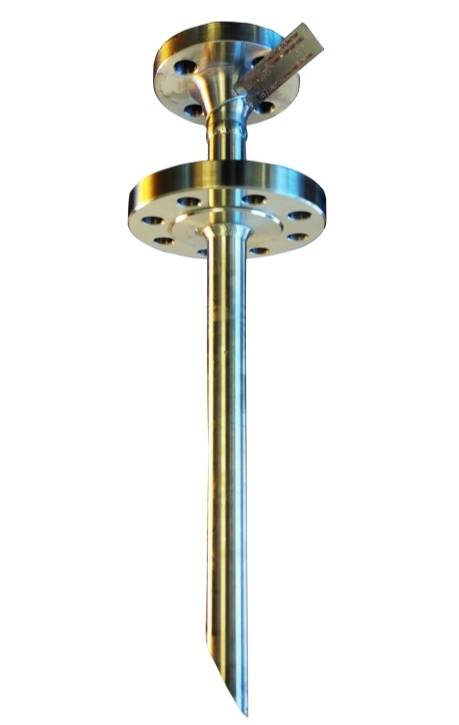

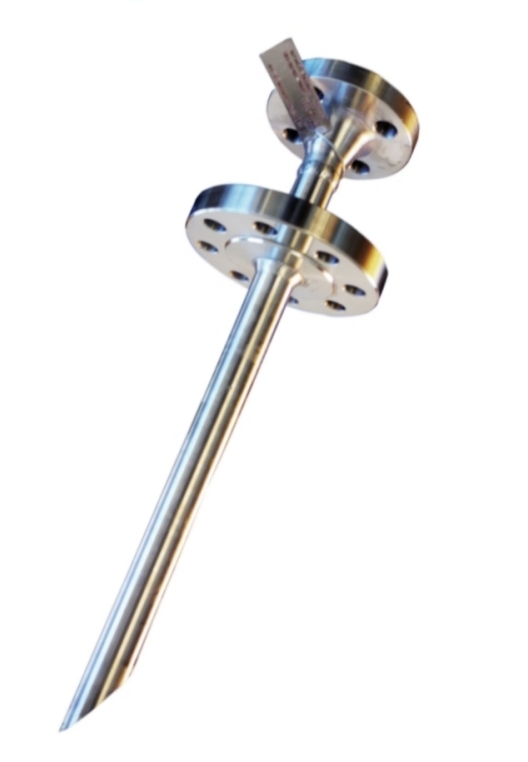

Connection types for the injection quill are versatile, offering both threaded and flanged options, allowing for flexible integration into existing piping systems. The quill tip is specially designed to ensure optimal chemical dispersion into the process fluid, enhancing mixing efficiency and chemical utilization.
Connection Type
Threaded or flanged Quill Tip Designed for optimal chemical dispersion into the process stream.
EMT’s Fixed Type Chemical Injection Quill offers a robust design and high durability. Moreover, it includes customizable features to meet diverse industrial needs. In addition, it handles high pressure and temperature without compromising performance. Therefore, industries rely on it for accurate and consistent chemical dosing. Ultimately, it performs exceptionally well in harsh and demanding operating conditions.
Key Benefits of the Fixed Type Chemical Injection Quill
Consistent Chemical Delivery
The fixed installation allows for continuous chemical dosing, ensuring stable process operations without interrupting system flow.
Exceptional Resistance to Corrosive Media
Constructed from premium-grade materials, the quill performs reliably in harsh chemical environments, significantly reducing wear and replacement frequency.
Improved Operational Efficiency
Accurate and targeted chemical injection promotes uniform dispersion, leading to enhanced performance in downstream applications and more efficient chemical usage.
Minimal Maintenance Requirements
Designed for durability, the quill operates with little need for ongoing maintenance, helping to reduce downtime and operational expenditures.
Tailored to Application Demands
Offered in a range of sizes, materials, and connection types, the quill can be customized to suit various industrial systems and specific process requirements.
