Description
Corrosion probes are essential tools for real-time monitoring of metal degradation in harsh industrial environments. Our advanced corrosion probes are designed for accuracy, durability, and ease of use across various applications, including oil and gas, power generation, and water treatment systems.
Featured Product Series

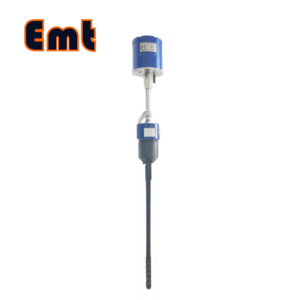

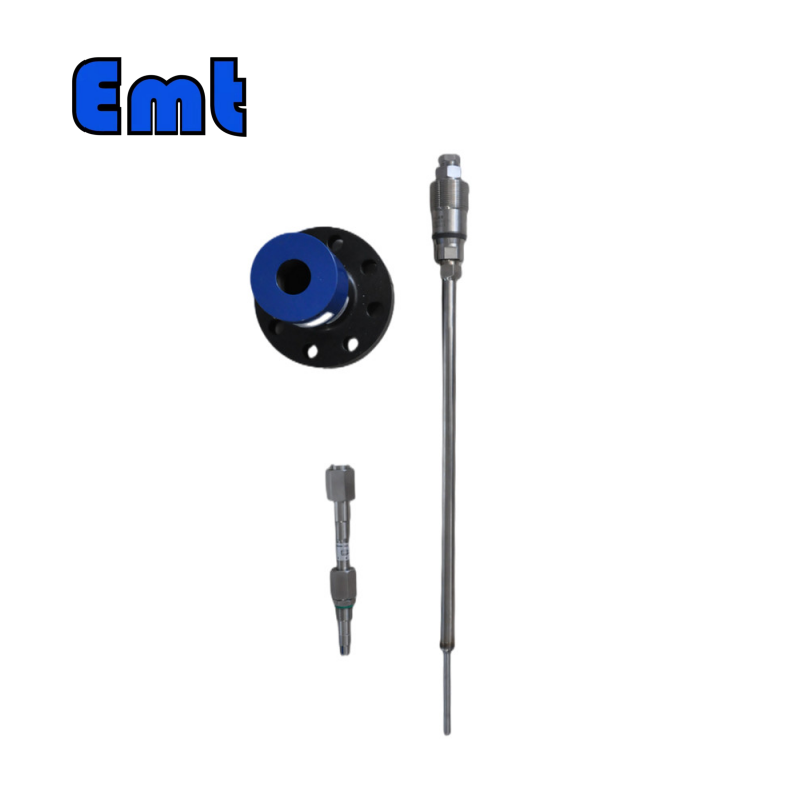

1. EMT-EP100 ER Corrosion Probe
-
Type: Cylindrical, retrievable, fixed-length
-
Principle: Electrical Resistance (ER)
-
Application: High-pressure systems up to 45 MPa
-
Temperature Range: –200°C to 450°C (options available)
-
Materials: 316 SS, 316L SS, Duplex SS, Inconel
-
Sealing: Fully welded, glass-sintered seal, pressure-resistant filler
-
Installation: Compatible with hollow plug systems, retrievable under pressure without shutdown
2. LPR Corrosion Probes
-
Type: Linear Polarization Resistance (LPR)
-
Application: Real-time corrosion rate measurement in electrolyte environments
-
Probe Styles: Cylindrical, flat, ring-shaped, and custom electrodes
-
Temperature Range: Up to 260°C (customizable)
-
Pressure Range: Up to 41.3 MPa for high-pressure models
-
Materials: 316 SS, carbon steel, alloys, PVC, PEEK, PTFE, and more
-
Output: RS-485, 4G/5G wireless, Bluetooth download
Technical Comparison Table
| Feature | EMT-EP100 ER Probe | LPR Probe Series |
|---|---|---|
| Measurement Method | Electrical Resistance (ER) | Linear Polarization (LPR) |
| Max Pressure | 45 MPa | 41.3 MPa (high-pressure) |
| Max Temperature | 450°C | 260°C (standard) |
| Materials Available | 316SS, 316L, Duplex, Inconel | CS, SS, Alloys, Plastics |
| Installation | Hollow plug system | Flange, threaded, welded |
| Retrievable | Yes (under pressure) | Yes (depending on type) |
| Sealing | Full weld + glass sinter | Epoxy or ceramic fill |
| Output Options | N/A (passive sensor) | RS-485, Wireless, Bluetooth |
Applications
-
Oil & Gas: Pipeline corrosion monitoring, inhibitor effectiveness testing
-
Power Plants: Cooling water systems, boiler feedwater corrosion control
-
Water Treatment: Real-time corrosion assessment in pipelines and tanks
-
Laboratories: Corrosion inhibitor evaluation and material testing
Key Benefits
-
Real-Time Data: Continuous corrosion rate measurement without process interruption
-
High Compatibility: Suitable for various media and environmental conditions
-
Flexible Installation: Multiple connection types and probe lengths available
-
Durable Design: Robust construction for long-term use in aggressive environments
-
Easy Integration: Compatible with data collectors and wireless communication systems
