Foam Disc Wiping Pig

Category: Product ID: 24845

Description

In the critical world of pipeline maintenance, ensuring efficient and thorough cleaning without damaging the line is paramount. Among the diverse array of pipeline pigs, the Foam Disc Wiping Pig stands out for its unique design and exceptional versatility. This article dives deep into what foam disc pigs are, how they work, their key advantages, and where they excel, providing essential information for pipeline operators and integrity managers.

What is a Foam Disc Wiping Pig?

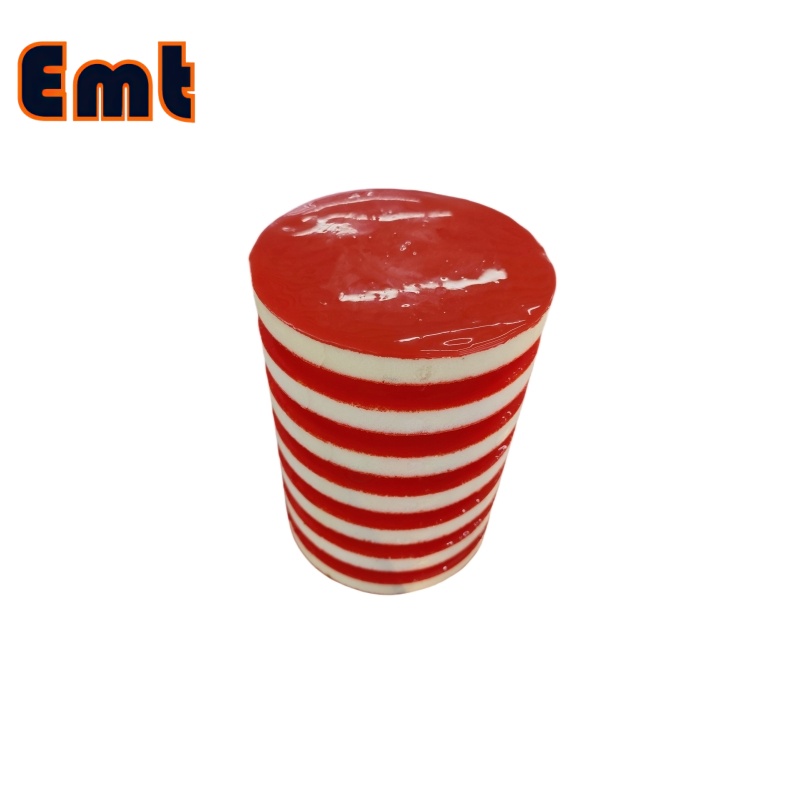

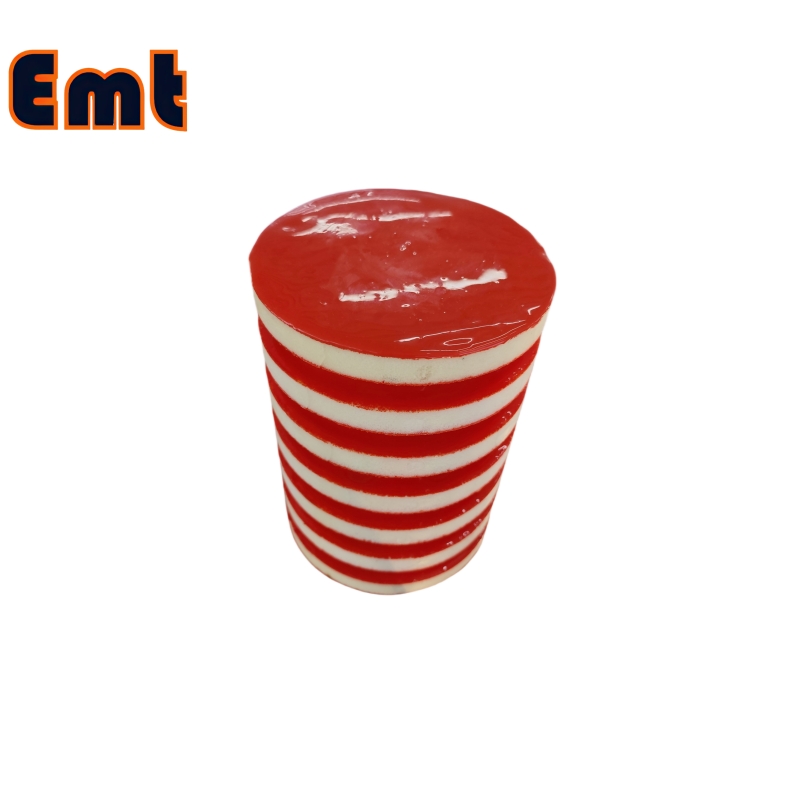

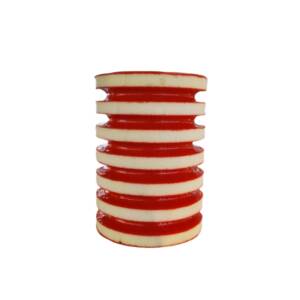

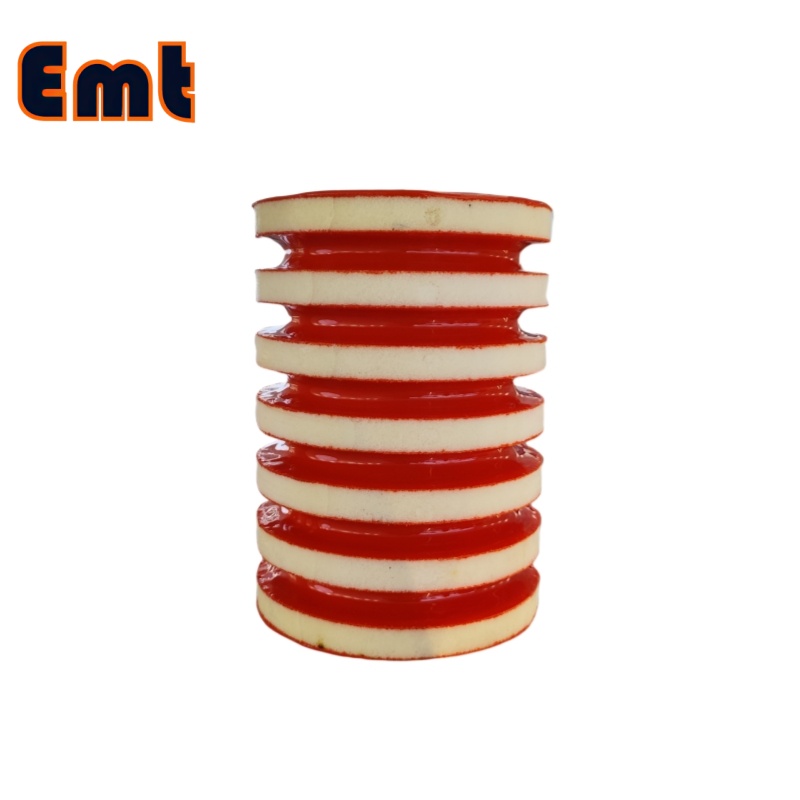

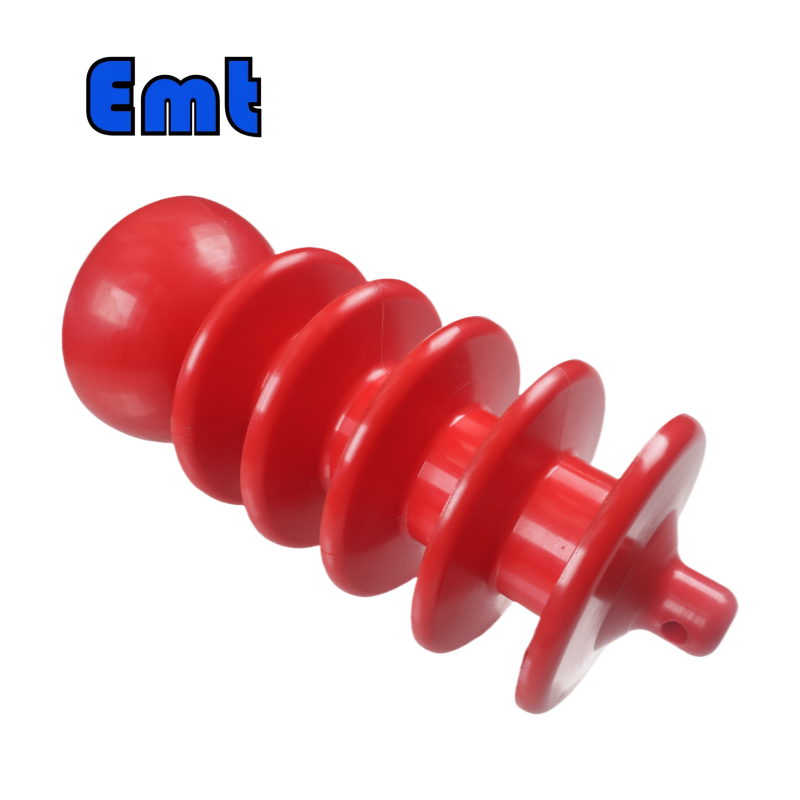

A Foam Disc Wiping Pig is a specialized type of utility pig constructed primarily from polyurethane foam. Unlike solid cast foam pigs, its defining feature is a series of separate, flexible polyurethane discs mounted onto a central, robust steel mandrel. These discs are typically spaced apart and can vary in diameter and density (hardness).

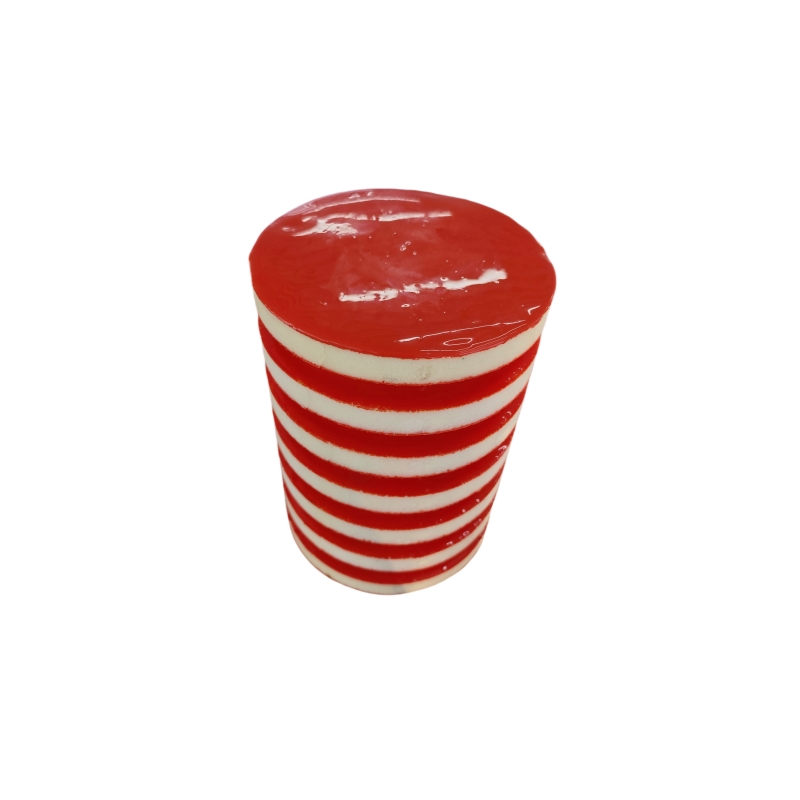

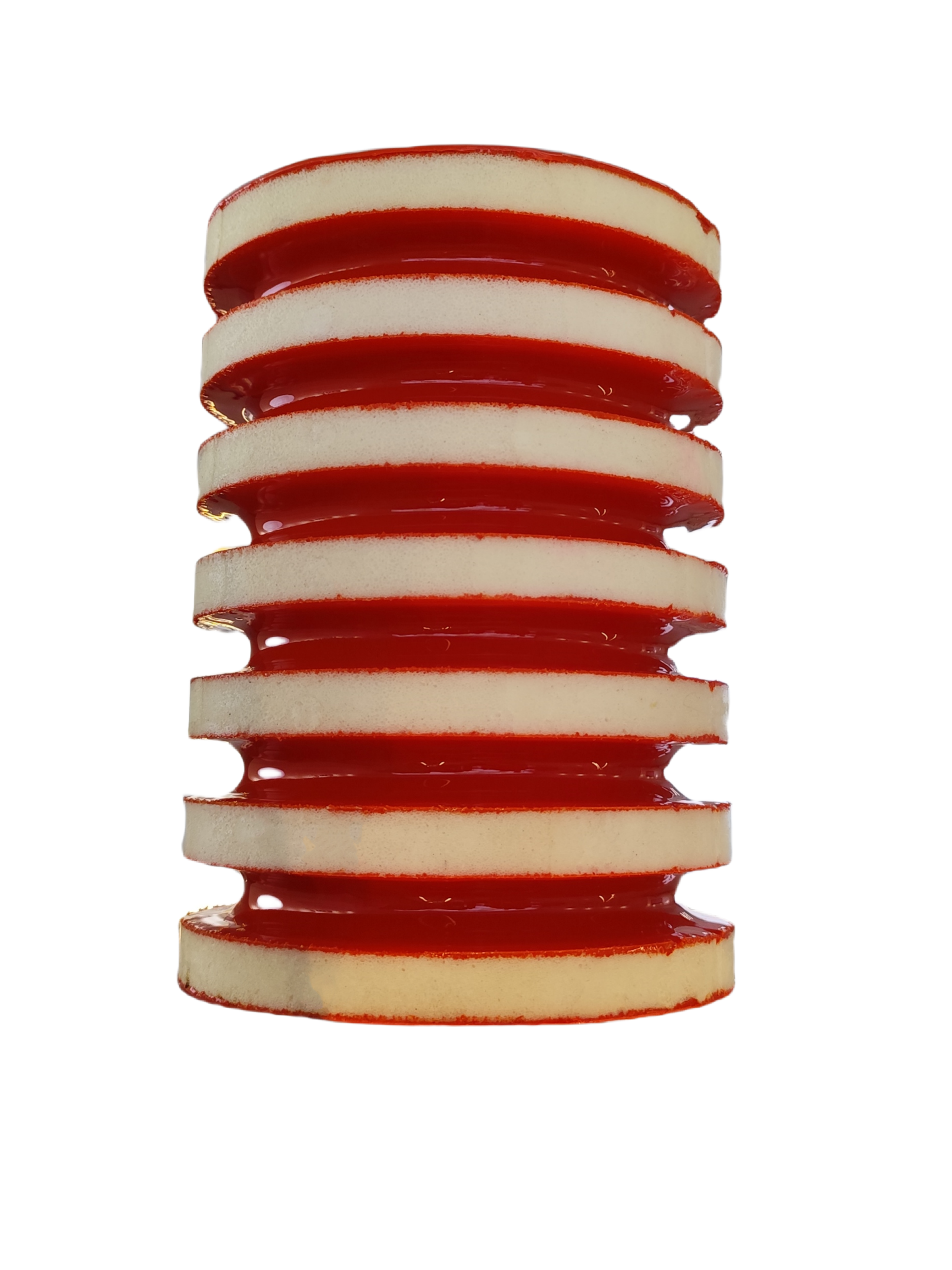

foam disc pig

How Does a Foam Disc Wiping Pig Work?

The magic lies in its segmented disc design:

Multiple Wiping Points: As the pig travels through the pipeline propelled by product flow (liquid or gas), the edges of these discs make continuous contact with the pipe wall.

Flexibility & Conformity: The foam discs are highly flexible. This allows them to:

Conform to minor out-of-roundness, dents, or wrinkles in the pipe.

Navigate bends (elbows) smoothly.

Pass through significant diameter variations (e.g., where pipe sections are slightly oversized or undersized, or through certain types of reducers) much more easily than solid-body pigs.

Effective Wiping & Brushing: The discs mechanically wipe and brush away loose debris, scale, wax, water, and other soft deposits from the pipe wall. They create a good sealing effect, helping to propel debris ahead of the pig.

Bypass Capability: The spaces between the discs allow a controlled amount of flow bypass. This prevents the pig from getting stuck in heavy debris piles and helps fluidize and transport debris ahead of it.

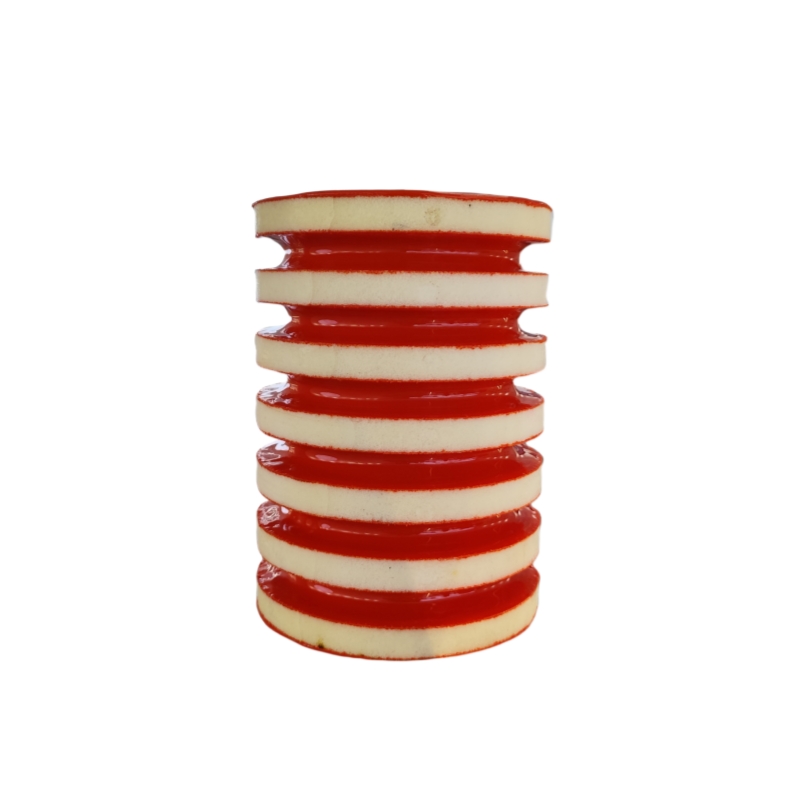

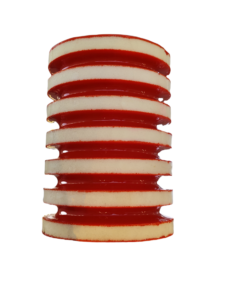

foam disc pig

Key Advantages of Foam Disc Wiping Pigs:

Superior Diameter Variation Tolerance: Their standout feature. They excel in pipelines with unknown or varying internal diameters, mismatched joints, or slight ovality where rigid pigs might jam.

Excellent Maneuverability: Handles tight bends, tees, and wyes with greater ease than many solid pigs.

Gentle on Pipelines: The flexible foam construction minimizes the risk of damaging pipe walls, coatings, or internal linings compared to harder metallic pigs.

Bi-Directional Operation: Can typically run effectively in both directions.

Debris Handling: The bypass design helps manage moderate debris loads without severe risk of sticking. Good for “sweeping” operations.

Versatility: Suitable for a wide range of pipeline cleaning, wiping, and swabbing applications in oil & gas (production, transmission), petrochemical, water, and other industries.

Cost-Effective: Generally more affordable than complex multi-diameter or intelligent pigs. A good choice for routine maintenance wiping.

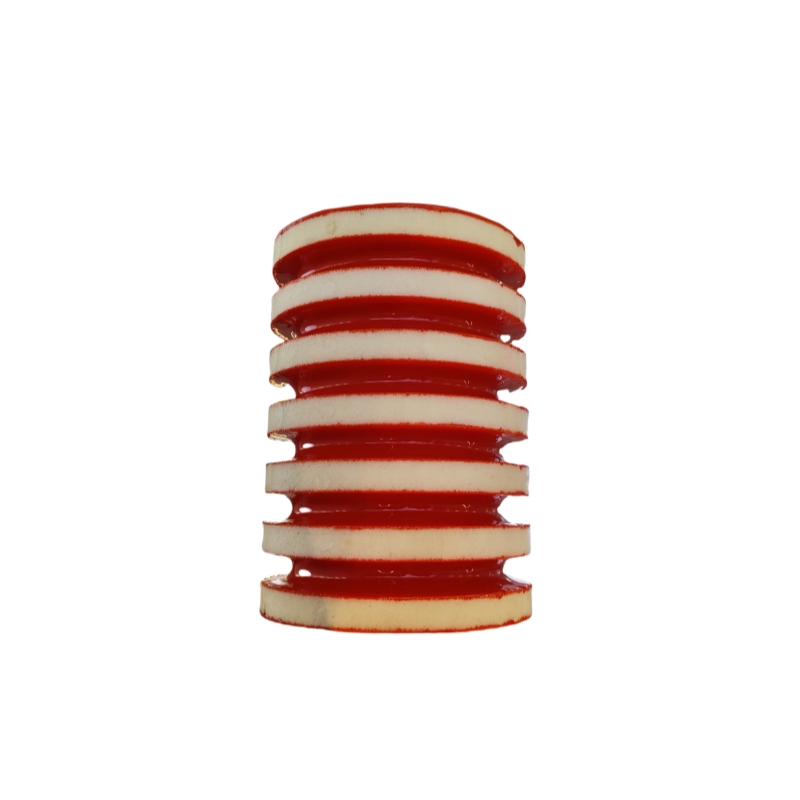

foam disc pig

Common Applications:

Pre-Inspection Cleaning: Removing loose debris and liquids before running inline inspection (ILI) tools (caliper, MFL, UT) to ensure accurate data capture.

Batching/Separating: Creating a barrier between different products in multi-product pipelines.

Water Removal (Swabbing): Effectively removing water or condensate from gas lines or after hydrotesting.

Debris Removal: Cleaning out construction debris, sand, scale, or soft wax deposits.

Pre-Commissioning: Preparing new pipelines for service.

Routine Maintenance Wiping: Keeping pipelines clear of buildup between major cleaning runs.

Drying Pipelines: Assisting in drying processes after hydrotesting when used with air or gas.

Choosing the Right Foam Disc Pig:

Consider these factors:

Pipe Internal Diameter (ID): Mandrel and discs sized accordingly.

Pipeline Conditions: Bends (DDR – Bend Diameter to Pipe Diameter Ratio), known diameter changes, valves, tees.

Debris Type & Amount: Disc density (hardness) and spacing can be adjusted. Softer discs for delicate coatings, harder discs for more aggressive wiping.

Fluid Medium: Compatibility with the product (oil, gas, water, chemicals).

Purpose: Simple wiping vs. debris removal vs. liquid swabbing.

Foam Disc Pig vs. Solid Cast Foam Pig vs. Mandrel Pig:

Solid Cast Foam Pig: Single piece of molded foam. Simpler, cheaper, good for basic wiping and swabbing in consistent diameters. Less tolerant of variations/bends than disc pigs.

Foam Disc Pig: Greater flexibility, diameter tolerance, and bend navigation due to segmented discs. Better debris bypass.

Steel-Bodied Mandrel Pig (with cups/discs): More robust for heavy-duty scraping, harder deposits, and longer runs. Less tolerant of severe diameter changes than foam discs. Used for gauging and more aggressive cleaning.

Conclusion

The Foam Disc Wiping Pig is an indispensable tool in the pipeline operator’s arsenal. Its unique segmented disc design offers unparalleled flexibility, tolerance for diameter variations, and gentle yet effective cleaning performance. Whether preparing a line for inspection, removing liquids, sweeping debris, or performing routine maintenance, foam disc pigs provide a reliable, versatile, and cost-efficient solution. Understanding their strengths and applications is key to optimizing pipeline integrity and flow efficiency programs.
