Introduction to Hydraulic Type Corrosion Coupons

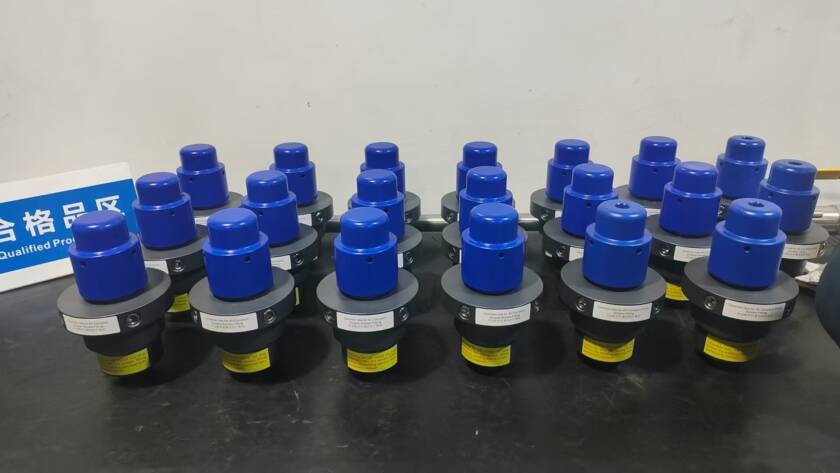

Hydraulic Type Corrosion Coupons are precision tools used to monitor corrosion rates within pressurized systems. They provide critical data for pipeline integrity management. Each coupon is carefully inserted into the process stream to measure metal loss over time. These coupons are essential for evaluating internal corrosion in real-time operating environments.
How Corrosion Coupon Work

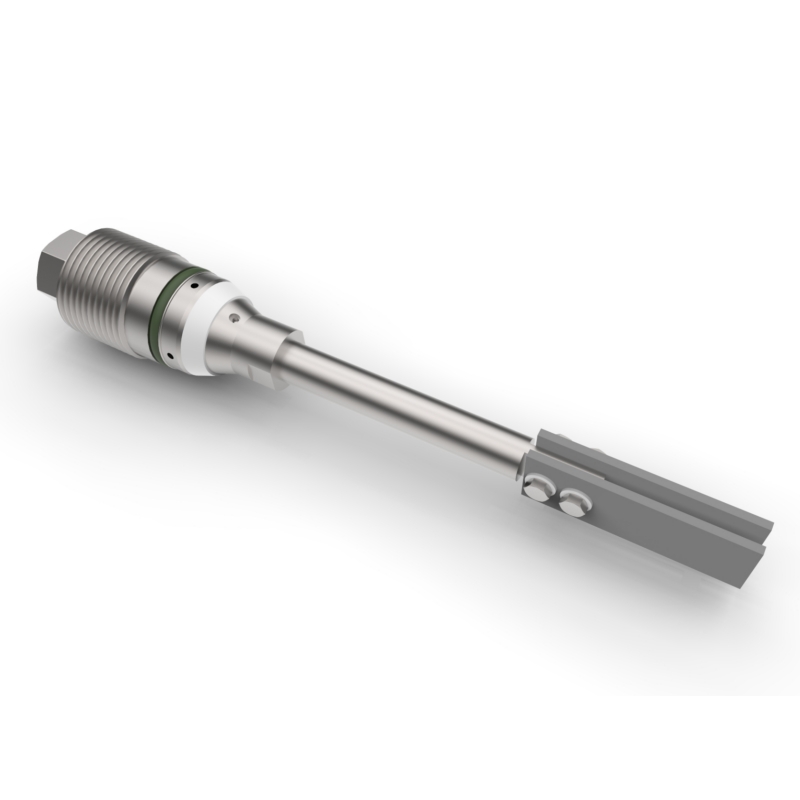

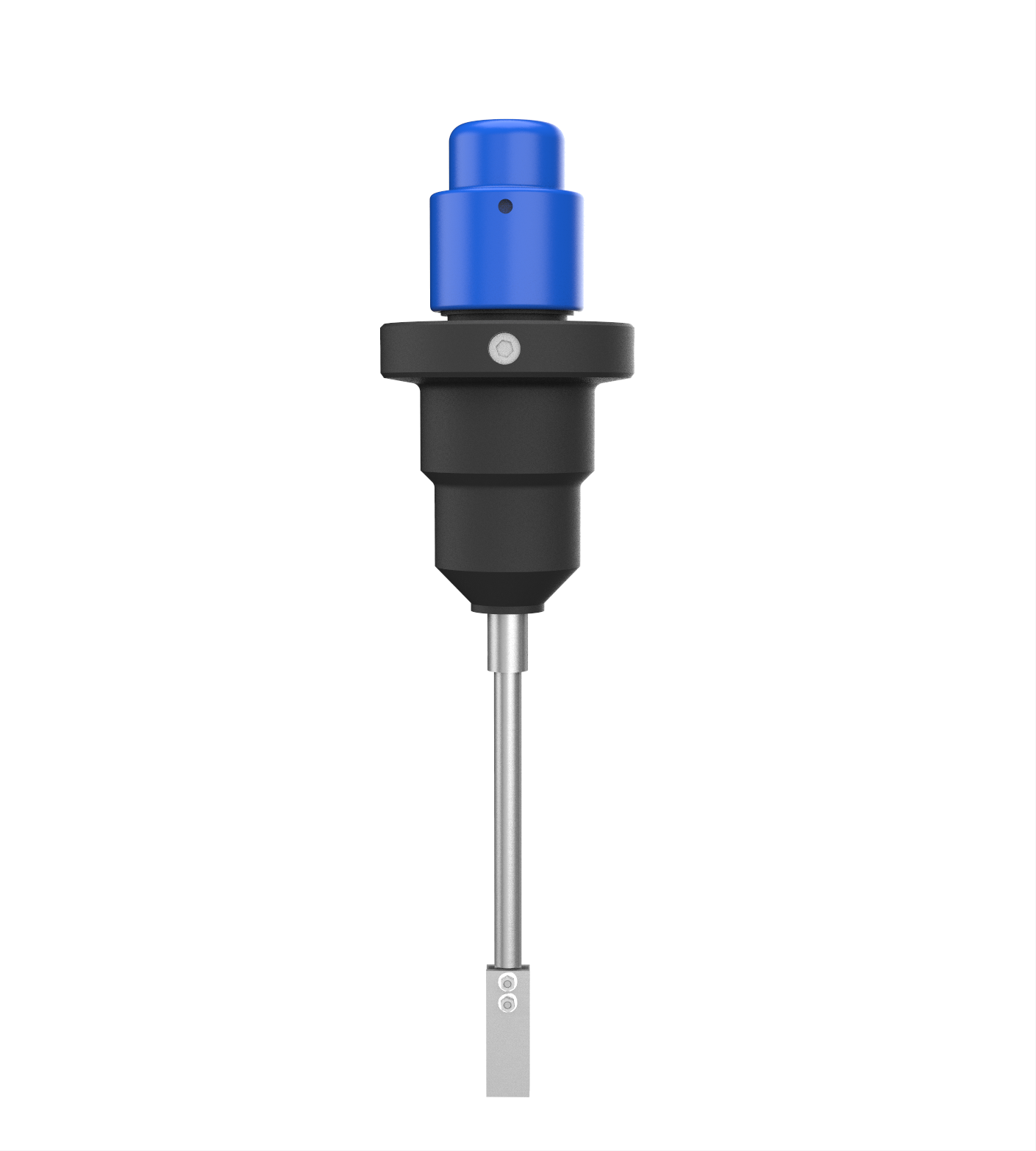

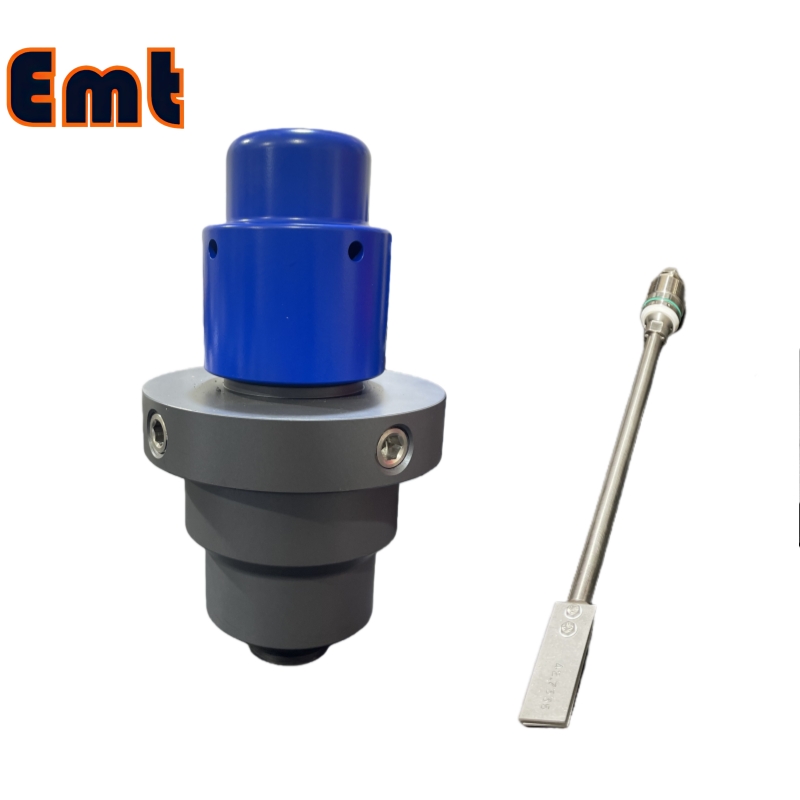

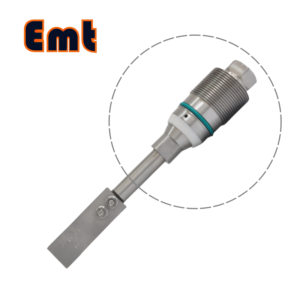

Operators install the corrosion coupon onto a specially engineered holder, which connects securely to a hydraulic access fitting. This fitting enables technicians to insert and retrieve the coupon safely, even while the system remains pressurized and operational. By eliminating the need for shutdowns, this process ensures continuous corrosion monitoring without interrupting production or flow.
Once inside the pipeline or vessel, the exposed metal surface of the coupon comes into direct contact with the process fluid. The fluid may contain water, gas, chemicals, or a combination of corrosive substances, depending on the system. As the coupon remains in place over a defined exposure period—often weeks or months—it begins to corrode in response to the same environmental conditions affecting the internal surfaces of the system.
After the exposure period ends, technicians retrieve the coupon using the hydraulic tool under controlled and safe conditions. They then clean and weigh the coupon to determine the exact amount of material loss. By comparing the initial and final weights and analyzing the surface condition, corrosion engineers calculate the average corrosion rate, type of corrosion (uniform, pitting, etc.), and the severity of damage.
This hands-on, direct measurement method provides highly accurate, site-specific data. It allows corrosion teams to assess the effectiveness of mitigation strategies, such as chemical inhibitors or material selection. With these insights, operators can make informed decisions to protect assets, reduce failure risk, and maintain system integrity over time.
Key Applications of Hydraulic Type Corrosion Coupon
Hydraulic type corrosion coupons are widely used in oil, gas, and chemical process systems. They help operators identify problem areas before failure occurs. These tools are especially useful in high-pressure and aggressive environments. Their deployment reduces downtime and maintenance costs significantly.
Advantages of the Hydraulic Type
This system allows insertion without shutting down the pipeline. It ensures continuous monitoring in live systems. The coupons are easy to install, retrieve, and analyze. Their robust design ensures reliability in harsh field conditions. They also comply with industry standards for safety and performance.
Supporting Long-Term Integrity
Regular use of corrosion coupons supports long-term asset integrity. They provide early warning signs of corrosion threats. By analyzing coupon data, operators can optimize corrosion inhibitor dosing. This proactive approach extends equipment life and improves safety. It also supports regulatory compliance and risk management.
