Description

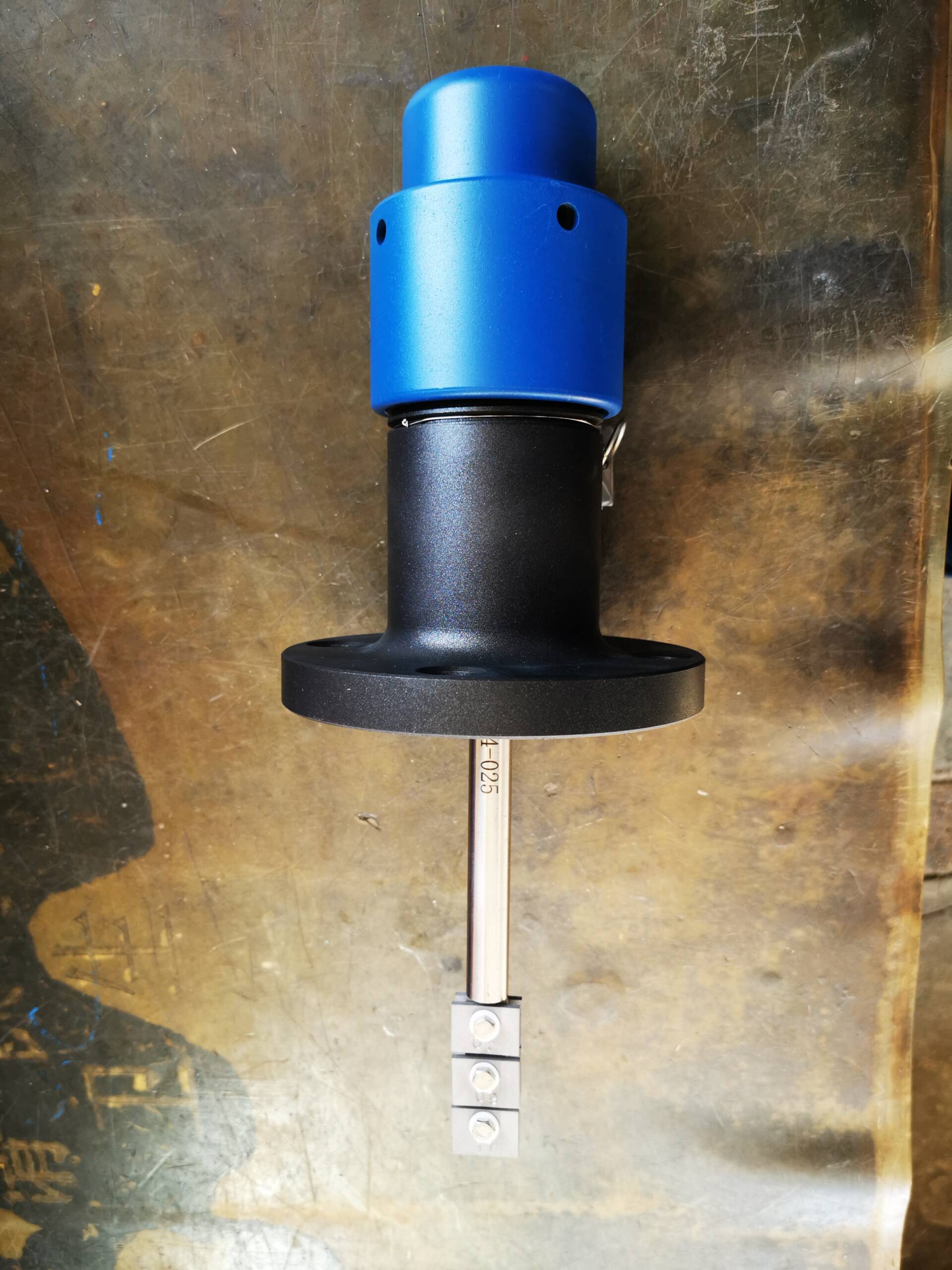

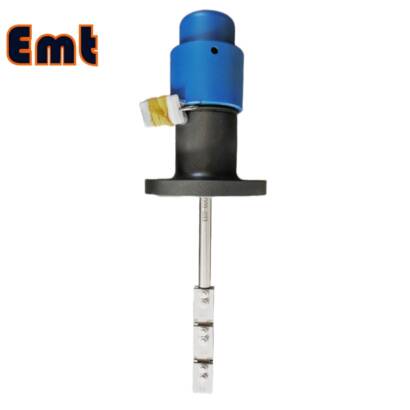

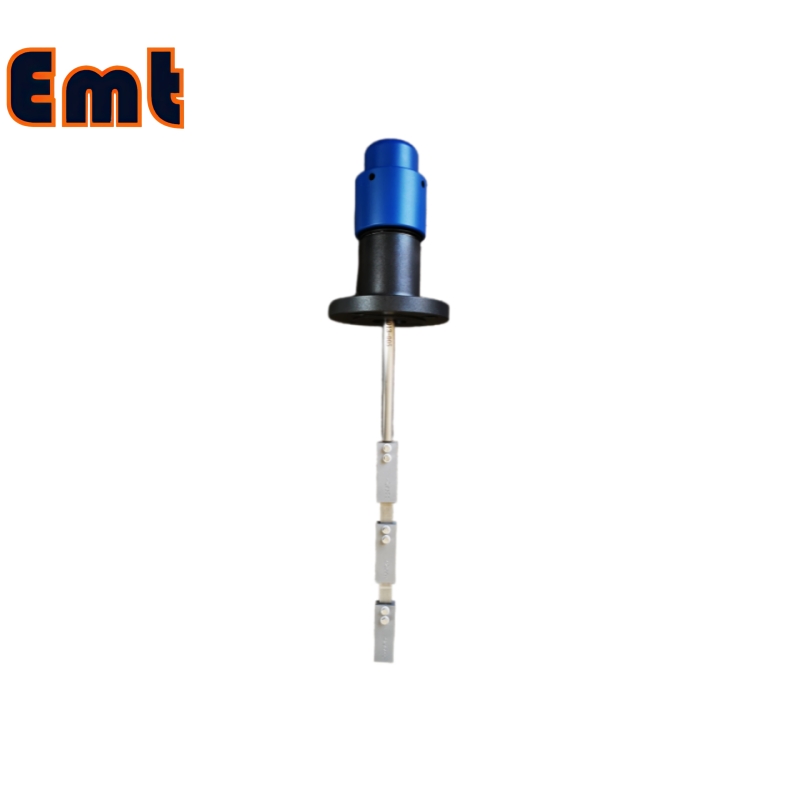

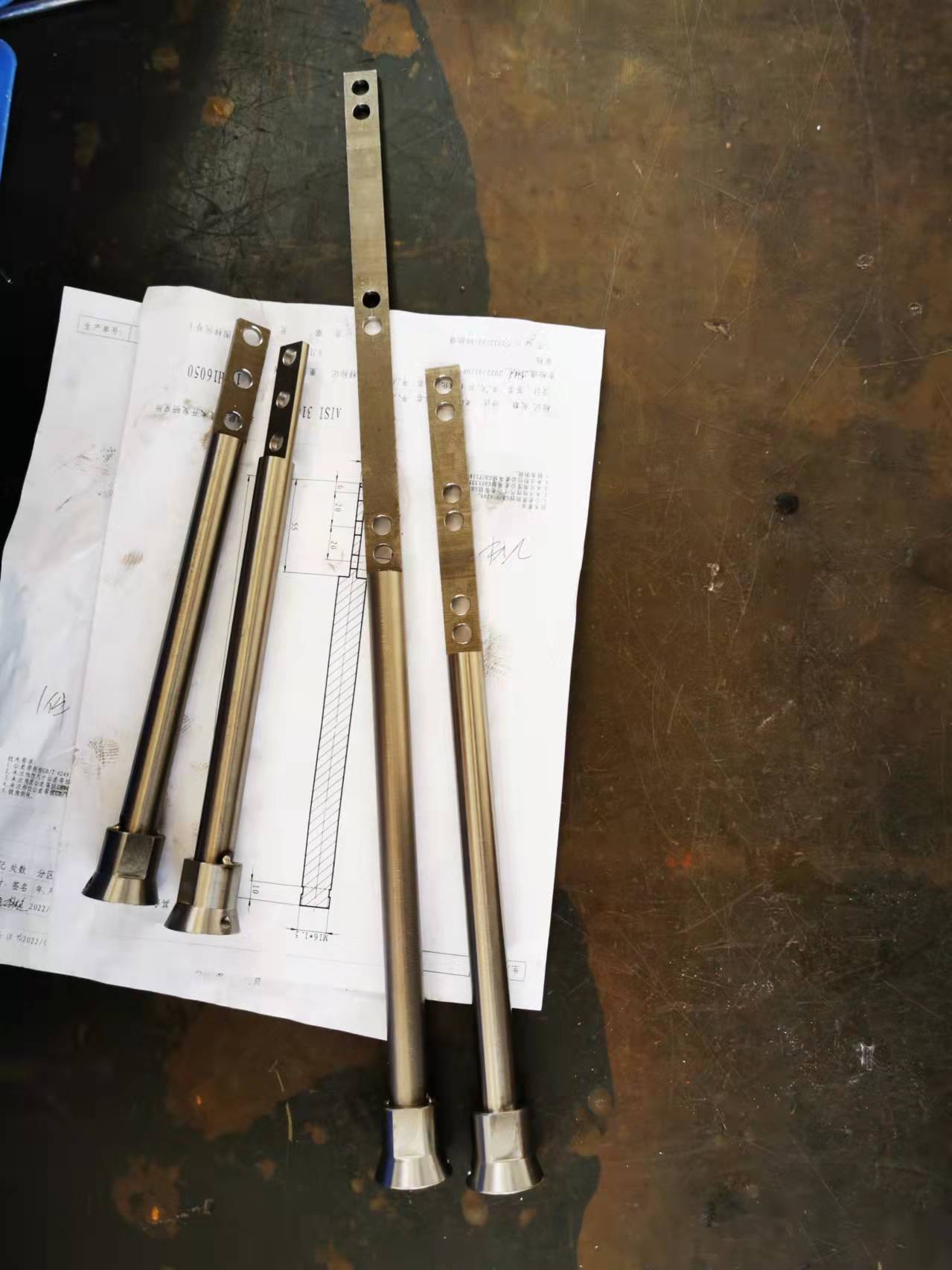

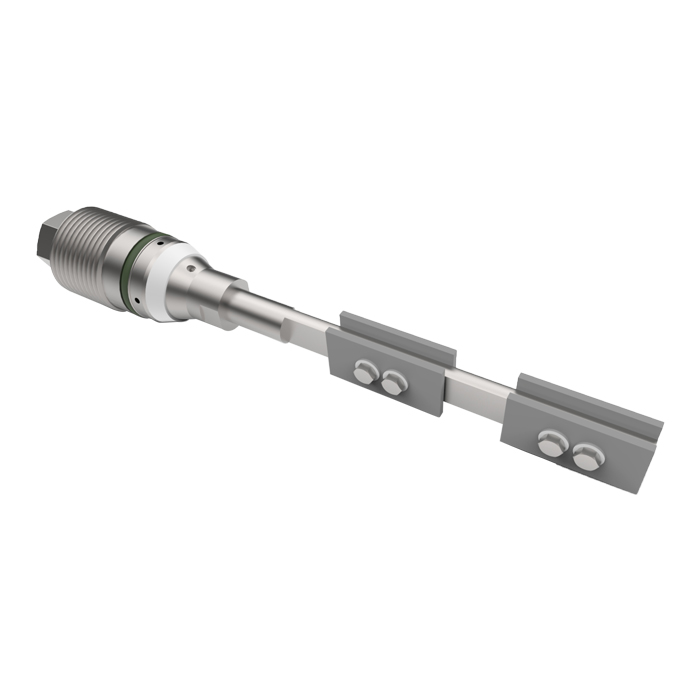

The EMT Ladder Strip Corrosion Coupon is designed to suspend up to six strip corrosion coupons (three pairs) from a single access fitting location. It features a left-hand threaded nut that secures the holder to the base of the EMT Plug Assembly, while also functioning as the primary packing retainer.
Specifications
- Material: 316 Stainless Steel
- Monitoring Capability: Top, middle, and bottom of the pipeline
- Mounting Hardware: Includes six sets
- Threading: Left-hand threaded nut
This robust and adaptable solution makes the EMT Ladder Strip Corrosion Coupon ideal for comprehensive corrosion monitoring in a wide range of pipeline environments.

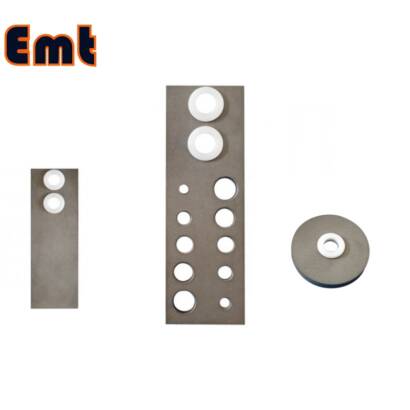

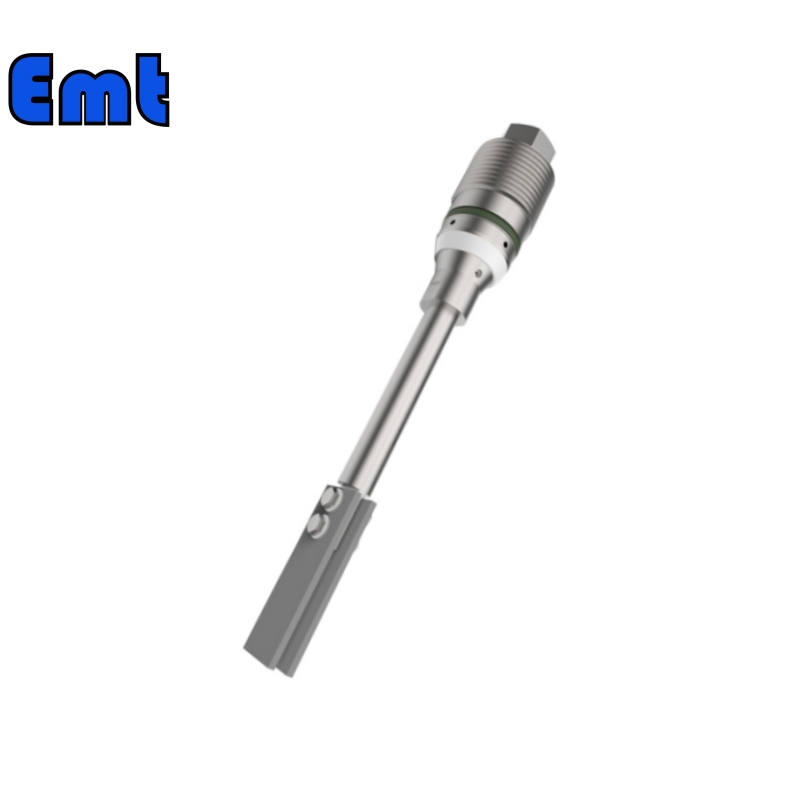

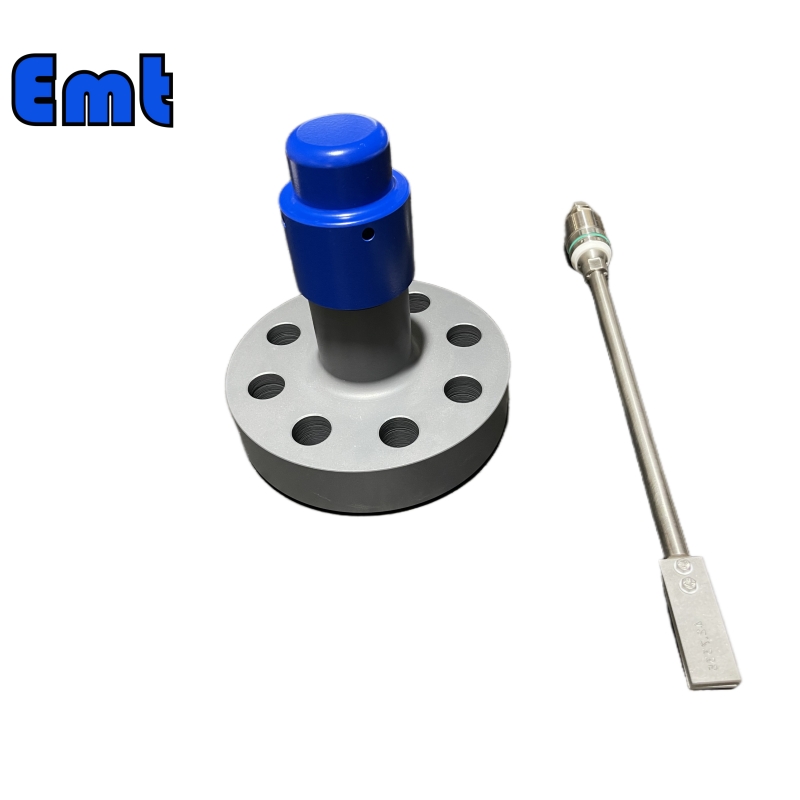

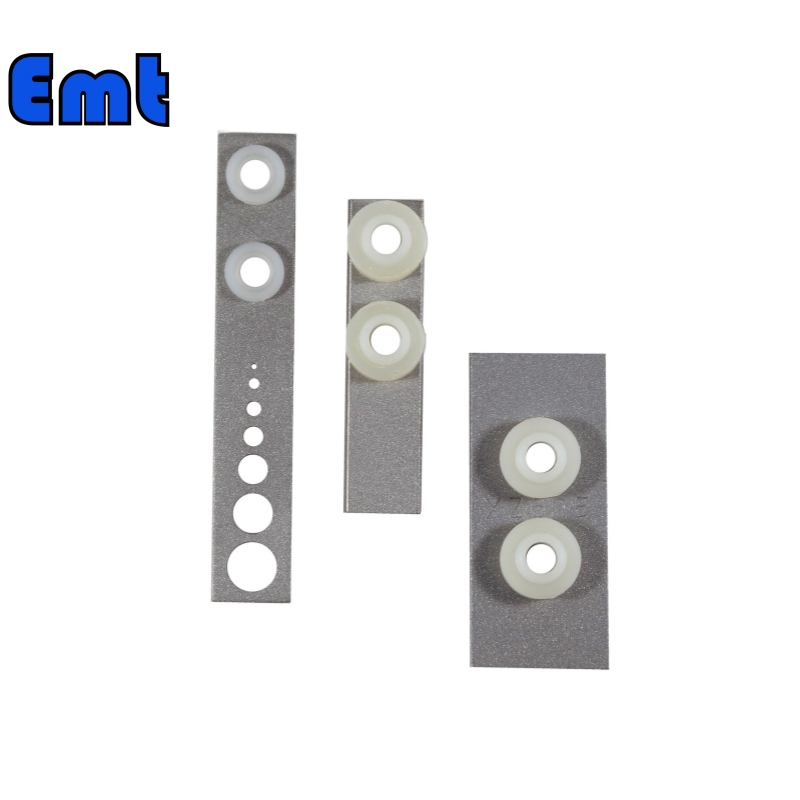

We provide different types of corrosion coupons for different use. Strip, ladder strip, flush disc, and multiple disc coupons. Different coupon materials are also available, like mild steel, carbon steel, 316LSS, and F51. If you want other materials, contact our sales team for further details. As for surface finish, we provide ground glass, directionally sanded, and bead blast types. Additionally, handling types are available pre-weighed and un-weighed.
Selection Form of Corrosion Coupon
| Model | Coupon | ||||||
| C | Coupon | ||||||
| Code | Coupon Size | ||||||
| S1 | 3” Strip Coupon Width 0.5″ | ||||||
| S2 | 3” Strip Coupon Width 1″ | ||||||
| L1 | Ladder Strip Coupon | ||||||
| D1 | Flush Disc Coupon | ||||||
| MD | Multiple Disc Coupon | ||||||
| Code | Coupon Material | ||||||
| Cc | ASTM A1018 Mild Steel | ||||||
| Cg | ASTM A350 LF2 Carbon Steel | ||||||
| Sa | SS316L | ||||||
| Db | F51 | ||||||
| Code | Surface Finish | ||||||
| 0 | Ground Glass | ||||||
| 1 | Directional Sanded | ||||||
| 2 | Bead Blast | ||||||
| Code | Handling | ||||||
| 0 | Pre-weighed | ||||||
| 1 | Un-weighed | ||||||
| Code | Special Options | ||||||
| 0 | No Special Option | ||||||
| 1 | Stamp Serial Number on Both Sides | ||||||
| C | S2 | Cc | 1 | 0 | 1 | Example | |
