Metal Corrosion Coupons EMT-CC are specialized tools used to monitor the rate of corrosion within various industrial systems

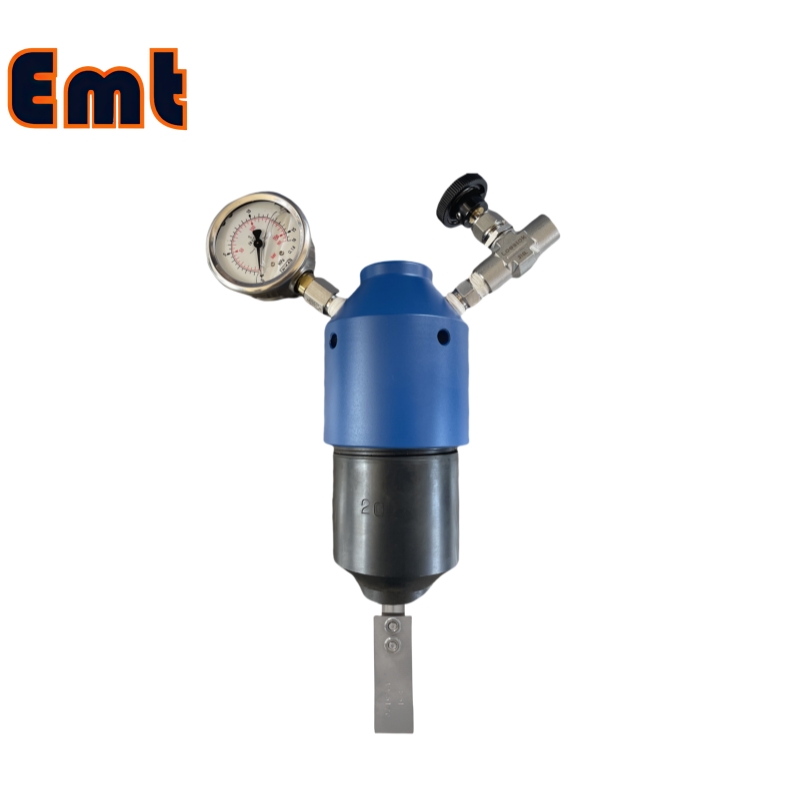

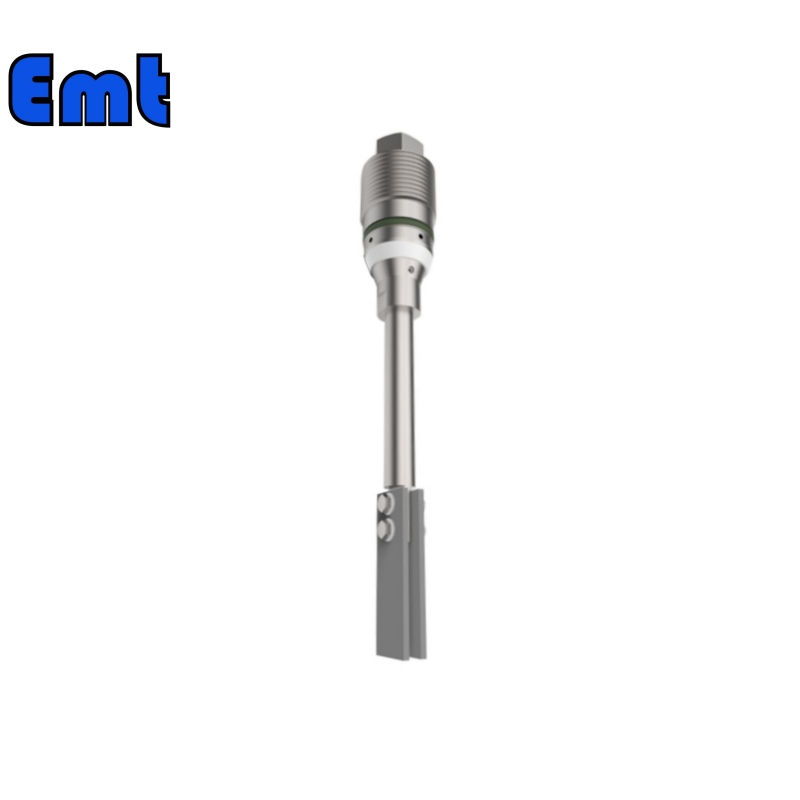

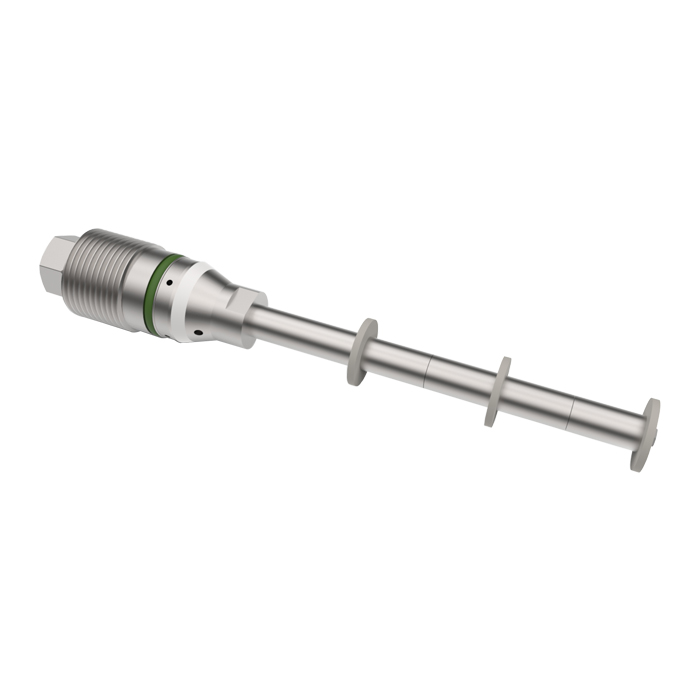

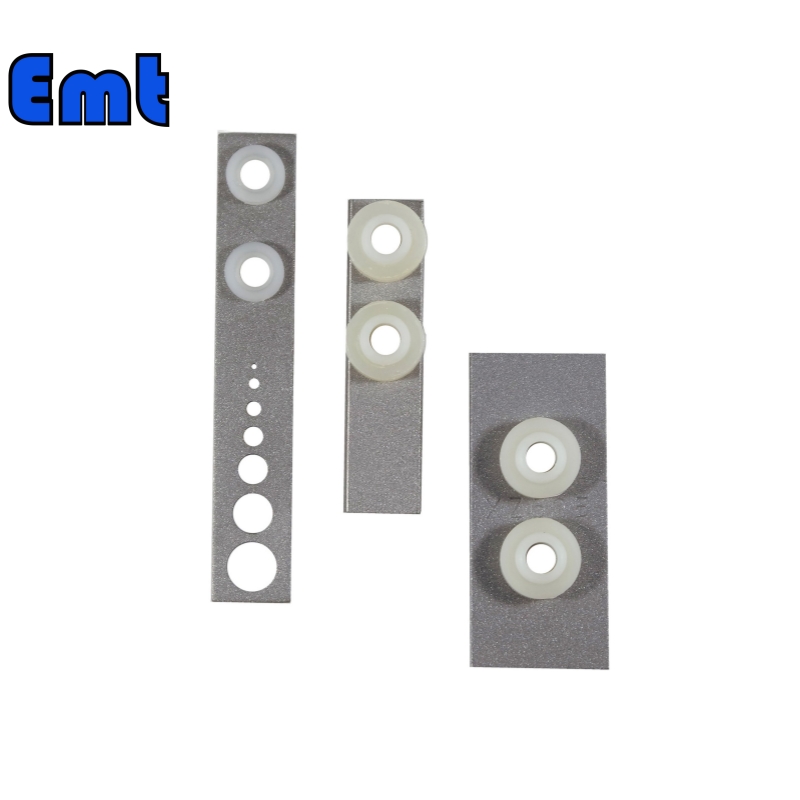

Metal Corrosion Coupons EMT-CC

1. Purpose of Corrosion Coupons

Corrosion coupons are primarily used to measure the corrosion rates within pipeline systems. They provide a quantitative basis for understanding the severity of corrosion and its potential impact on pipeline longevity and safety. Regular monitoring with corrosion coupons helps predict when maintenance or replacement of pipeline components might be necessary, thus preventing unexpected failures.

2. Types of Corrosion Detected

EMT metal corrosion coupons can detect various types of corrosion, including:

• Uniform Corrosion: This type of corrosion occurs evenly across the surface of the metal.
• Pitting Corrosion: More dangerous than uniform corrosion, pitting involves small, localized areas of metal loss that can lead to the rapid deterioration of mechanical integrity.
• Crevice Corrosion: Occurring in shielded areas, such as under deposits or in joints, this type often goes undetected until significant damage has occurred.

3. Installation and Retrieval

Corrosion coupons are installed in specific locations within the pipeline system where corrosion monitoring is necessary. They are left in place for a defined period, which can range from a few months to over a year, depending on the expected rate of corrosion and the specific monitoring objectives. After the exposure period, the coupons are retrieved and sent to laboratories for analysis.

4. Analysis of Corrosion Coupons

The analysis typically involves measuring the weight loss of the coupon, which, when adjusted for the surface area and exposure time, provides the corrosion rate. Advanced techniques can also be used to analyze the morphology of the corrosion and identify the specific corrosion products formed. Then this information is crucial for determining the corrosiveness of the environment to different materials and for assessing the effectiveness of corrosion inhibitors and other control measures.

5. Benefits of Using Corrosion Coupons

• Cost-Effective Monitoring: Corrosion coupons offer a low-cost method for routine corrosion monitoring.
• Proactive Maintenance Planning: Data obtained from corrosion coupons can help in scheduling maintenance before severe damage occurs, thereby reducing downtime and repair costs.
• Material Performance Evaluation: They help in evaluating the performance of specific materials in different environments, aiding in material selection and design decisions.

6. Common Challenges

While corrosion coupons are invaluable for monitoring corrosion, they do have limitations. They must be placed correctly to ensure they are representative of the system conditions, and they only provide data for the locations and time period in which they are installed. Moreover, interpreting the results requires expertise to ensure accurate conclusions about the system’s overall health.
