Product Overview

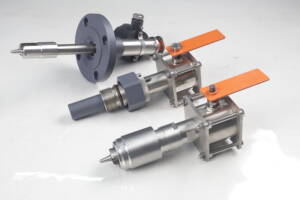

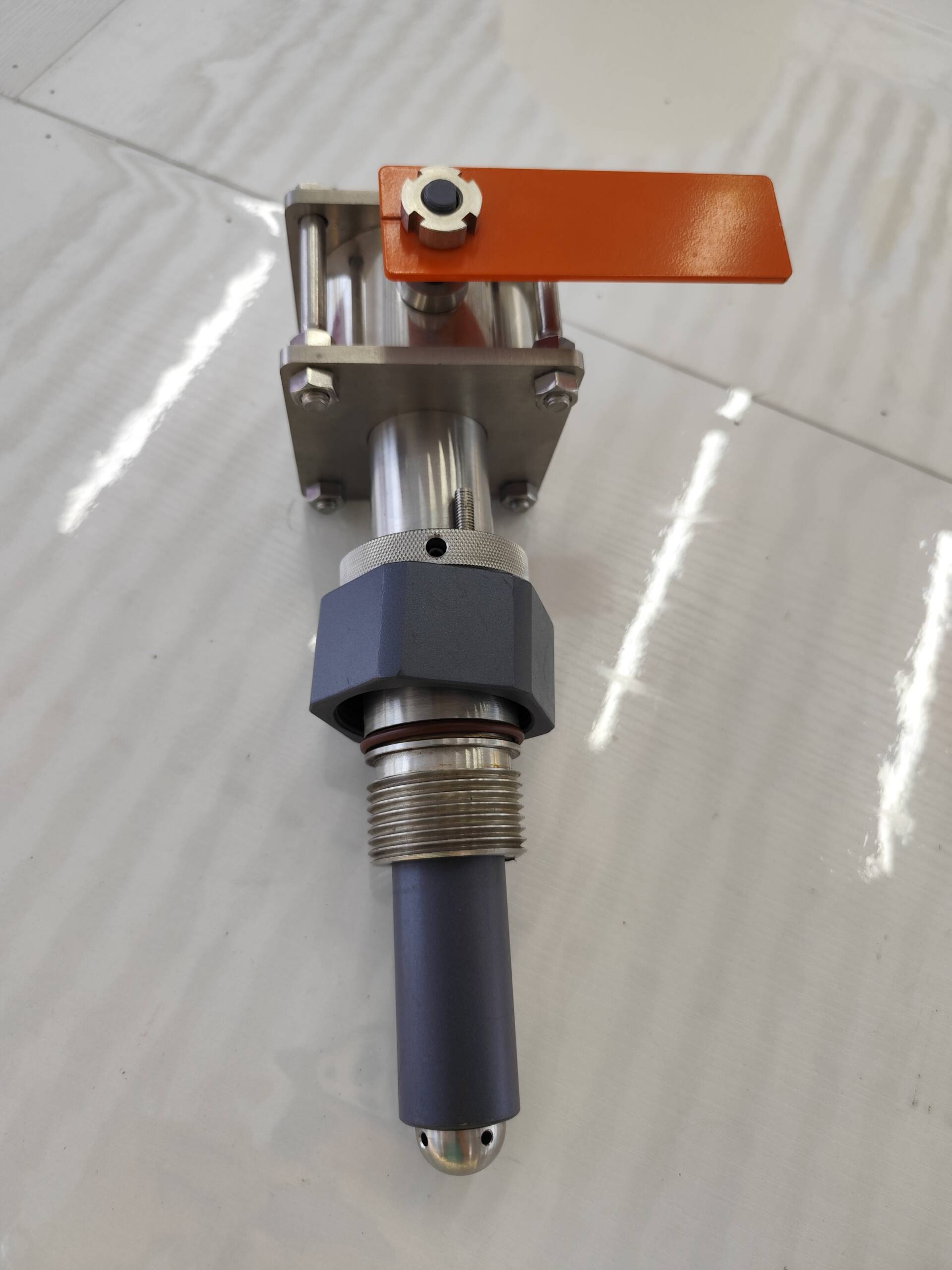

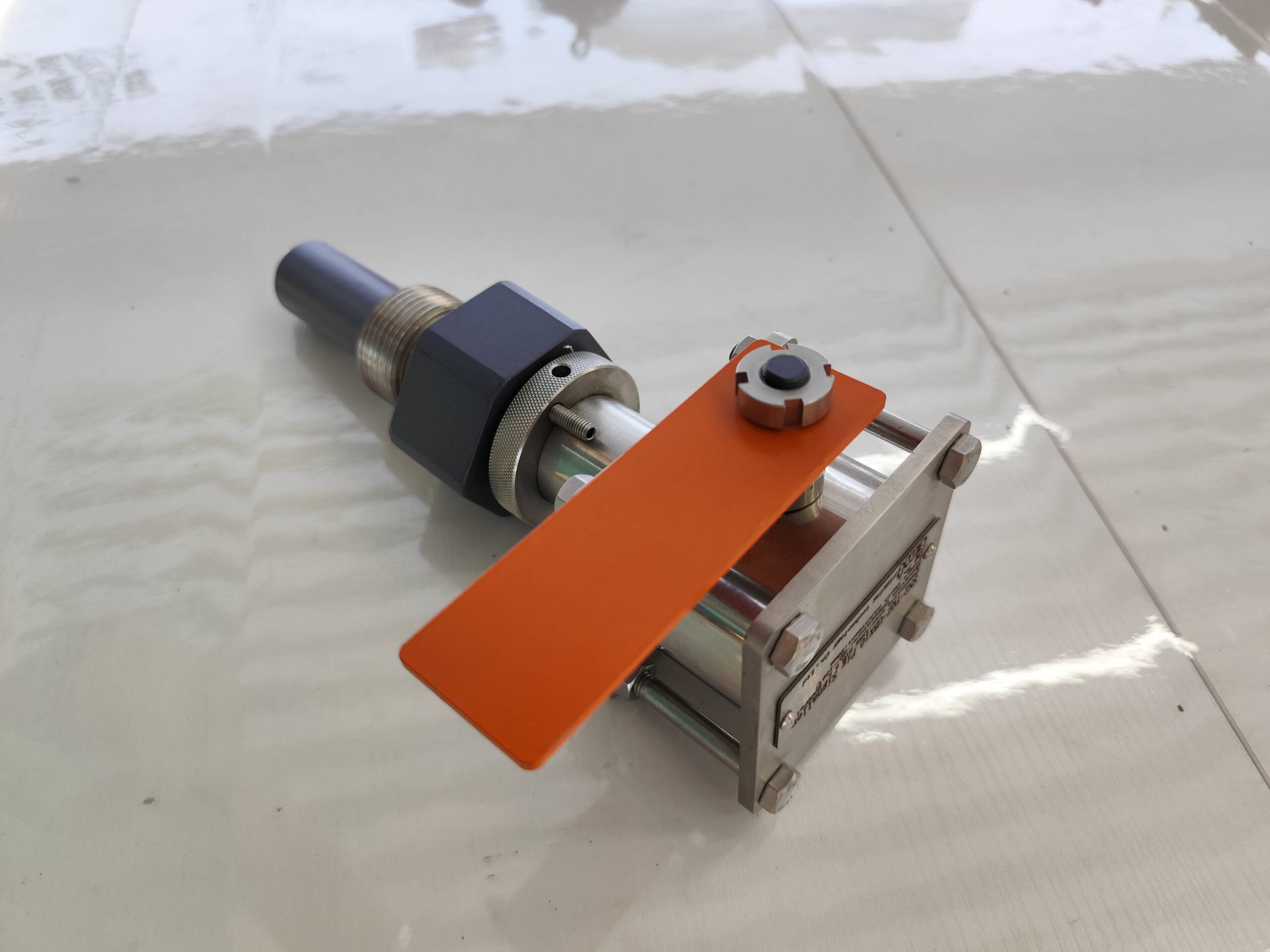

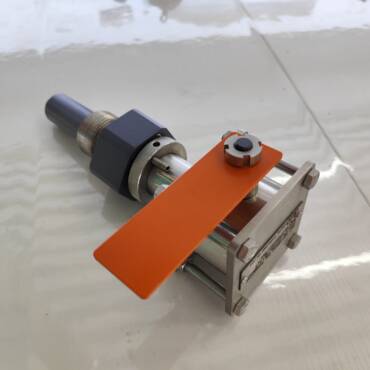

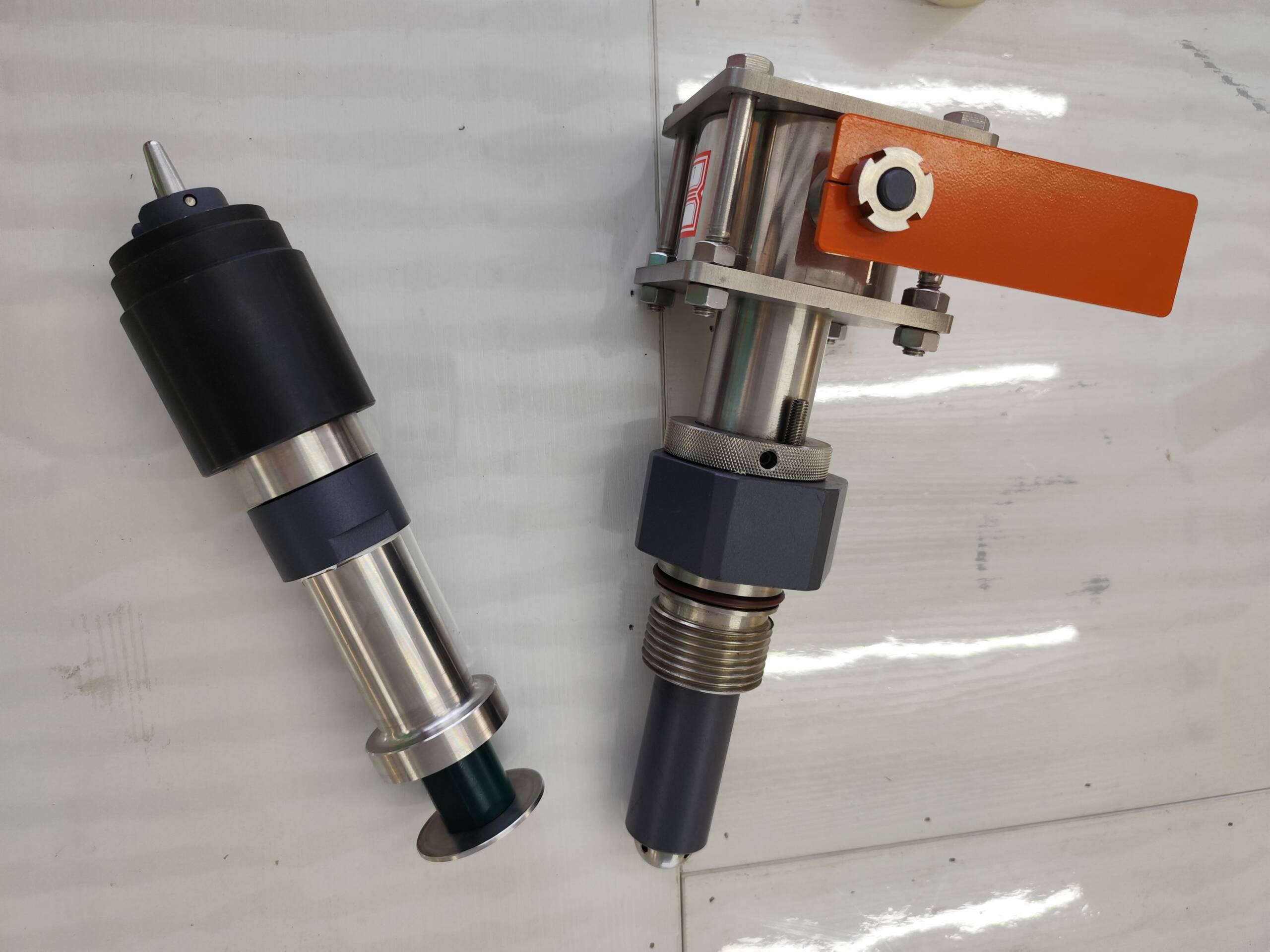

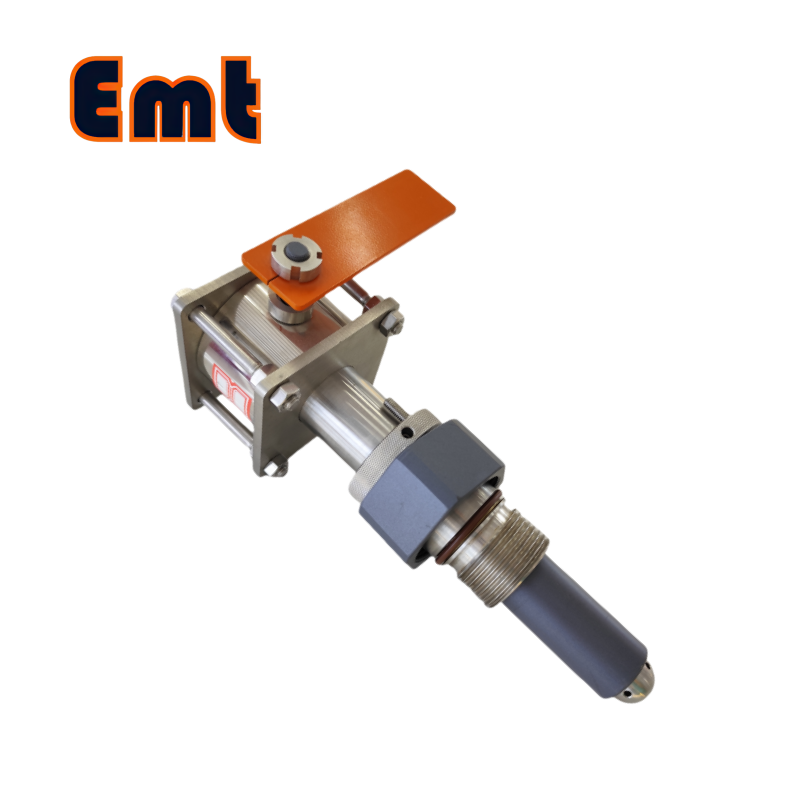

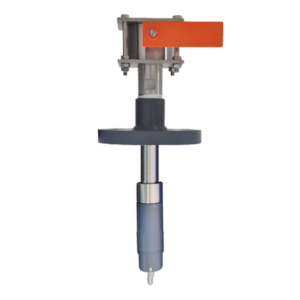

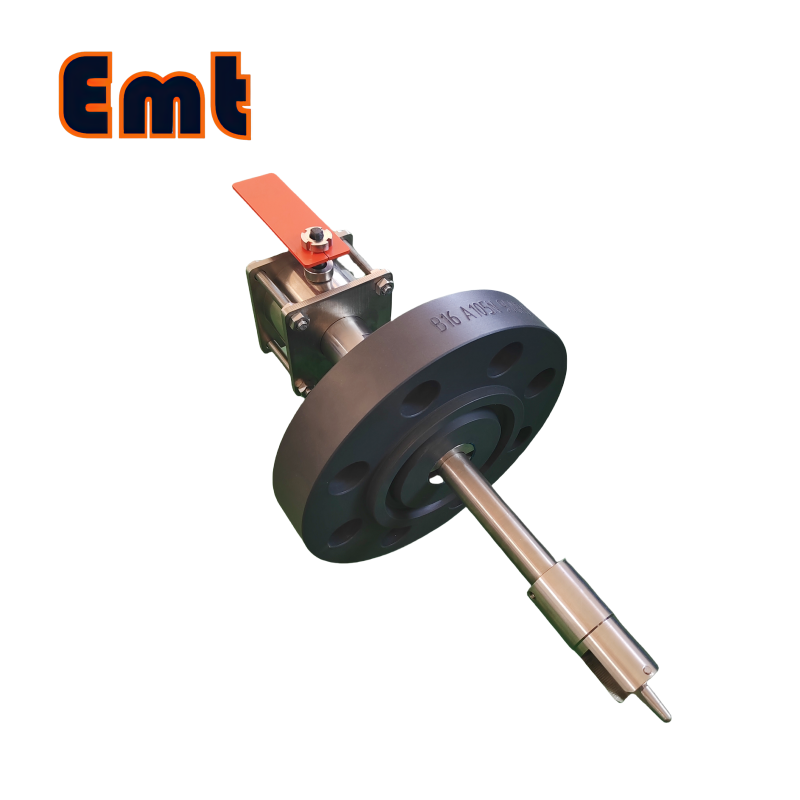

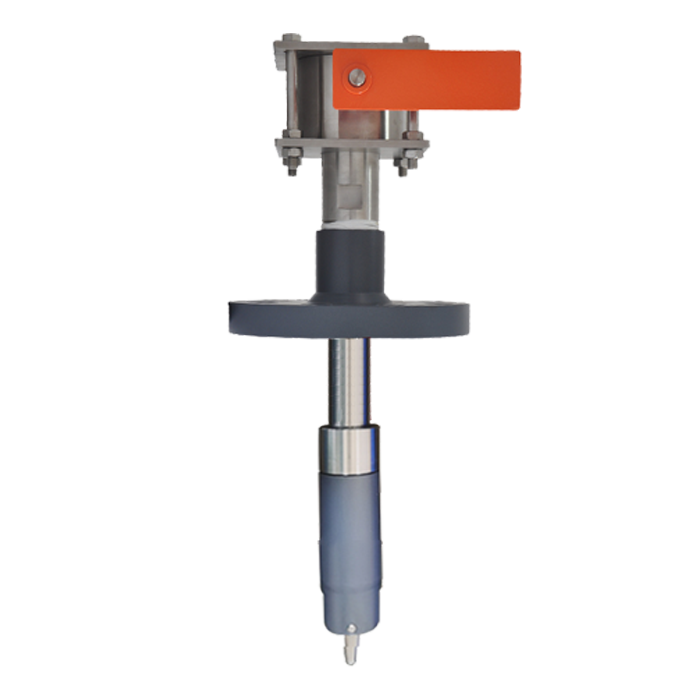

The Pig Signaller Intrusive represents the industry standard in pipeline pig detection technology, delivering uncompromising reliability for pigging

 operations across oil and gas, chemical, and water transmission systems. Engineered for direct flange mounting, this intrusive detection system provides immediate visual and electronic confirmation of pig passage, enabling operators to maintain complete control over their pipeline maintenance activities.

Key Features & Benefits

Robust Construction for Demanding Environments

• Full range of material options including CS A105, SS316, Duplex 2205, and Inconel 625

• Pressure ratings from ASME 150# to 2500# to match your pipeline specifications

• Temperature capability from -46°C to +200°C ensuring performance in extreme conditions

• IP66/67 ingress protection rating for reliable operation in submerged or harsh environments

Enhanced Operational Safety

• ATEX, IECEx certified for hazardous area installation

• NACE MR0175/MR0103 compliance for sour service applications

• Integral pressure containment design with secondary sealing protection

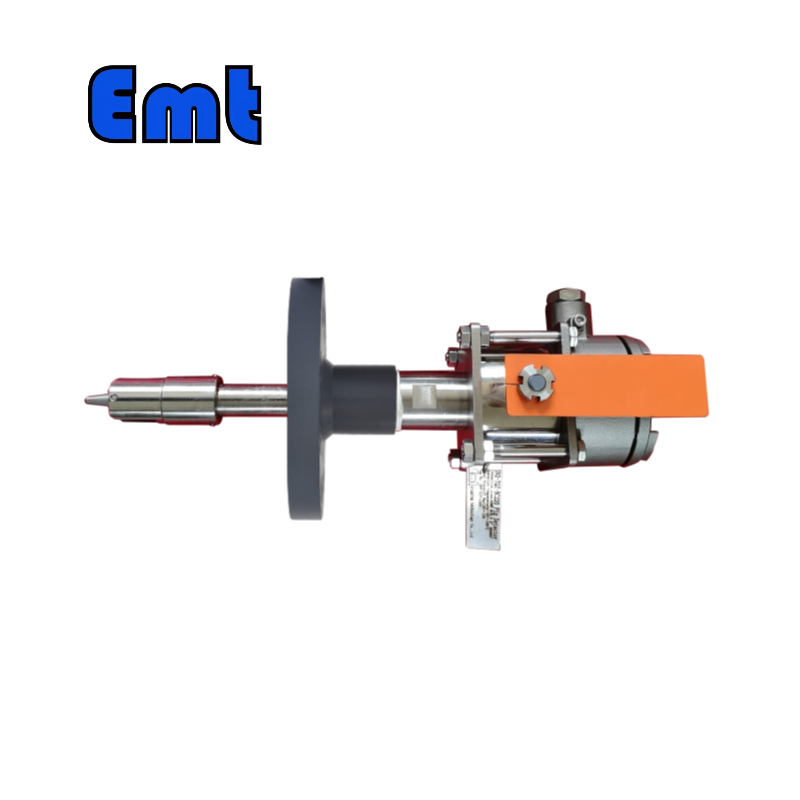

• Visual flag indicator with auxiliary electronic switch outputs

Flexible Installation & Integration

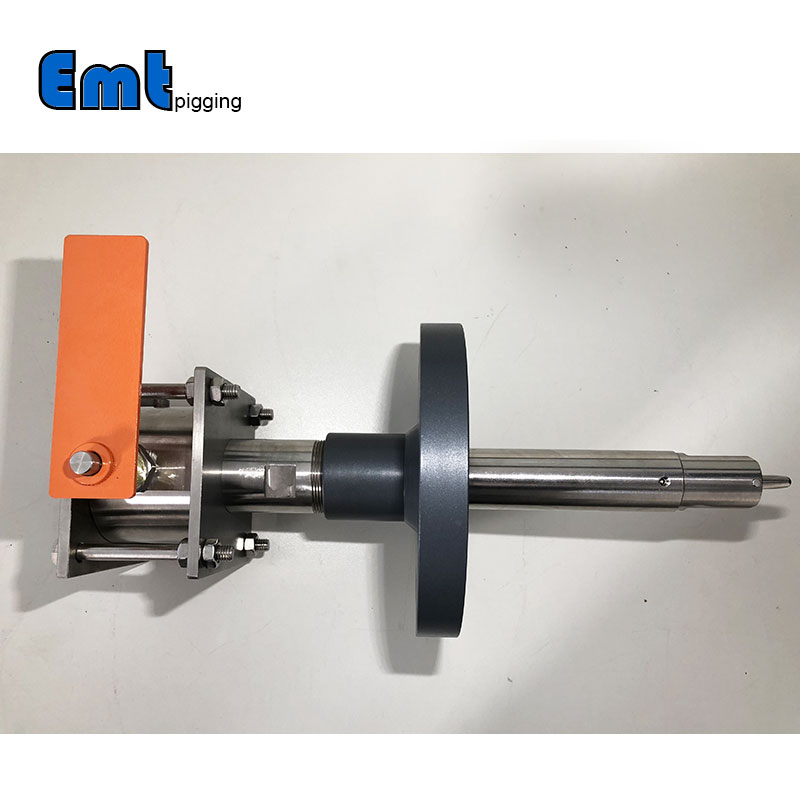

• Standard 2″ RF flanged connection for seamless pipeline integration

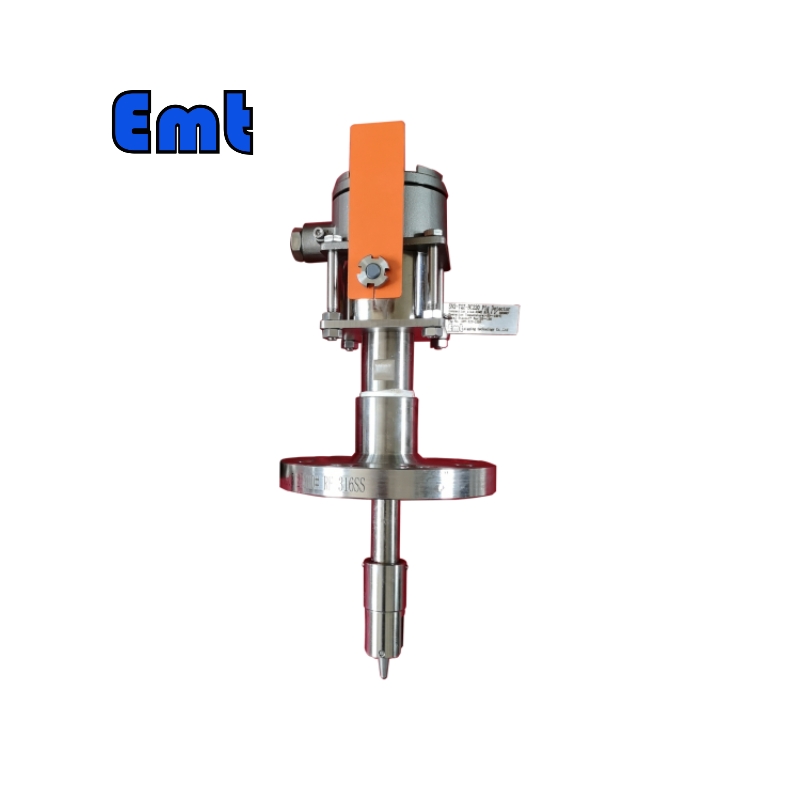

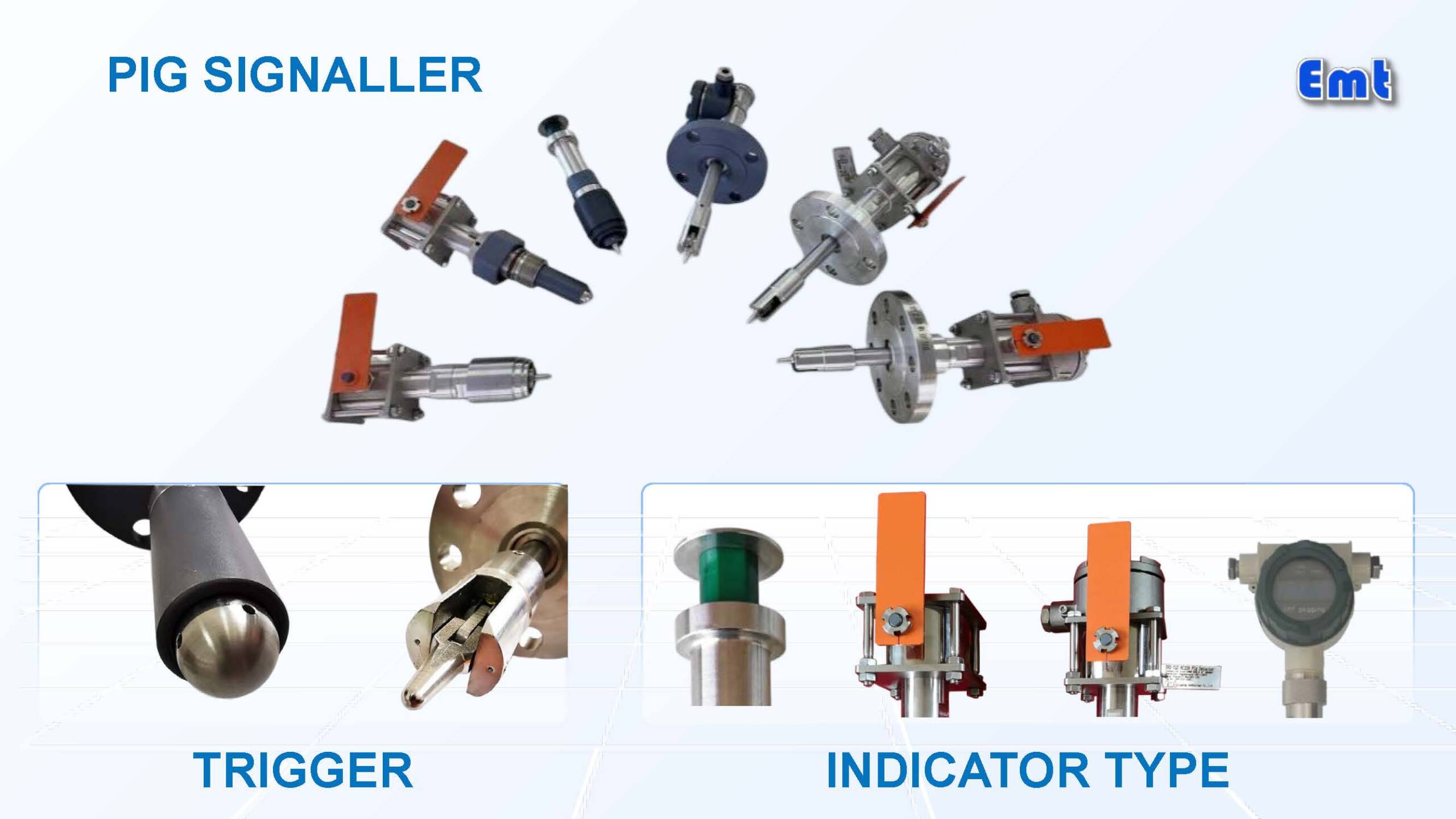

• Multiple trigger configurations: bidirectional, unidirectional, and feather trigger options

• Electronic outputs for SCADA integration and remote monitoring capabilities

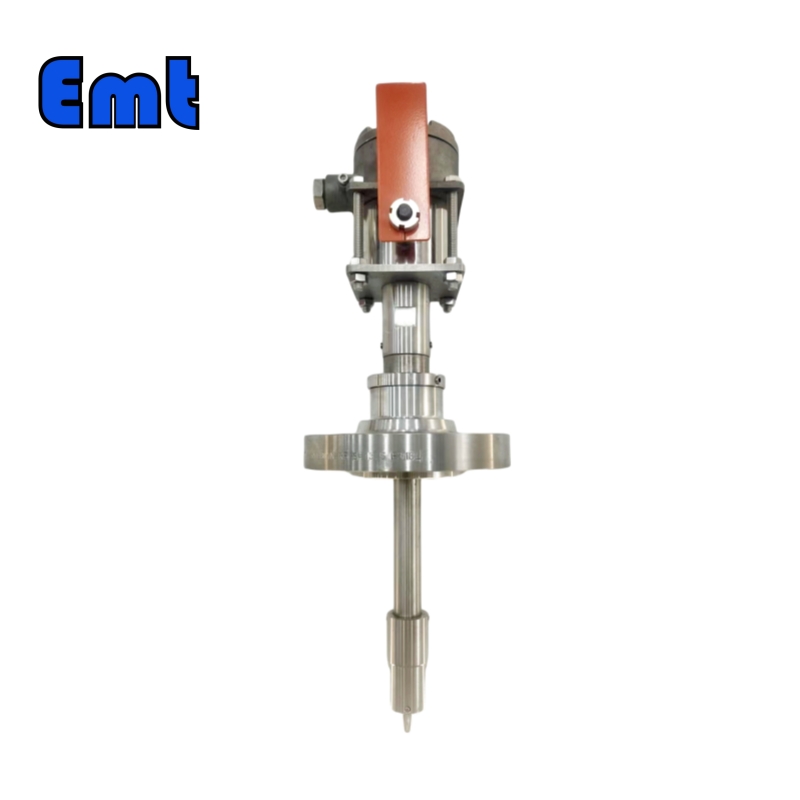

• Adjustable insertion depth to accommodate various pipe dimensions

Technical Specifications

Detection Performance

• Activation Force: Adjustable 2-10 N for mechanical triggers

• Magnetic Sensitivity: Configurable for standard and magnetic pigs

• Response Time: <50ms for electronic signal transmission

• Position Indication: Manual reset flag with micro-switch activation

Environmental Compatibility

• Explosion-proof Certification: ATEX II 2G Ex d IIC T6, IECEx Ex d IIC T6

• Corrosion Resistance: NACE MR0175 compliant materials available

• Weather Protection: IP66/67 rated enclosures

• Temperature Range: -46°C to +200°C standard, extended ranges available

Applications of Pig Signaller Intrusive

• Oil and gas transmission pipelines

• Refinery and petrochemical process lines

• Water and wastewater transmission mains

• Chemical processing and distribution systems

Why Choose Our Pig Signaller Intrusive?

• Custom configuration to match specific application requirements

• Global technical support and service network

• Complete documentation and certification packages

• Training programs for operations and maintenance teams
