Description
1. Introduction

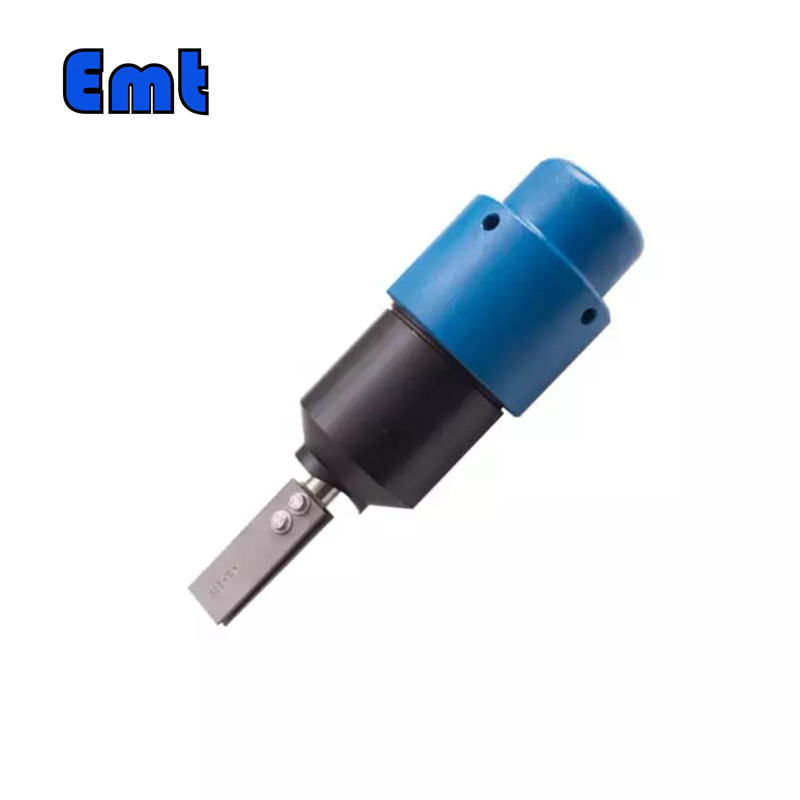

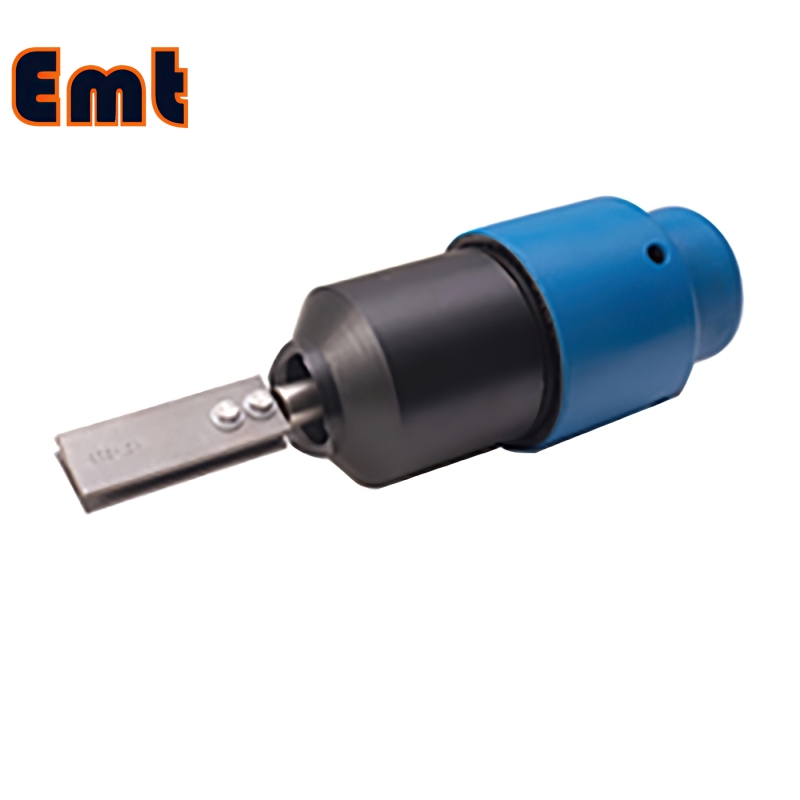

EMT Pipeline Corrosion Coupon is precision-engineered tool designed to provide a reliable measure of the corrosion rates within pipeline systems. Corrosion monitoring is a critical aspect of maintaining pipeline integrity and efficiency in various industries. They include oil and gas, energy, and mining. These coupons are an indispensable asset for proactive maintenance strategies, helping to extend the lifespan of costly infrastructure and ensure operational safety.
2. Key Features and Specifications
EMT Pipeline Corrosion Coupon is crafted from high-quality materials such as Stainless Steel 304, Stainless Steel 316, Duplex Stainless Steel F51, Carbon Steel A105N, and Inconel 625, catering to a diverse range of industrial applications. The standard dimensions for these coupons are 3 inches by 3/4 inch by 1/16 inch, with a surface area designed to provide accurate and consistent corrosion rate measurements.
Each coupon features a uniform and reproducible surface finish, crucial for obtaining reliable data. They are also marked with a unique serial number, ensuring traceability and ease of monitoring across various pipeline sections. Designed to withstand a broad temperature range from -20°C to +200°C, EMT coupons can work under extreme conditions without compromise to their structural integrity or performance.
3. Versatile Design Options
EMT offers several types of corrosion coupons to suit different monitoring needs:

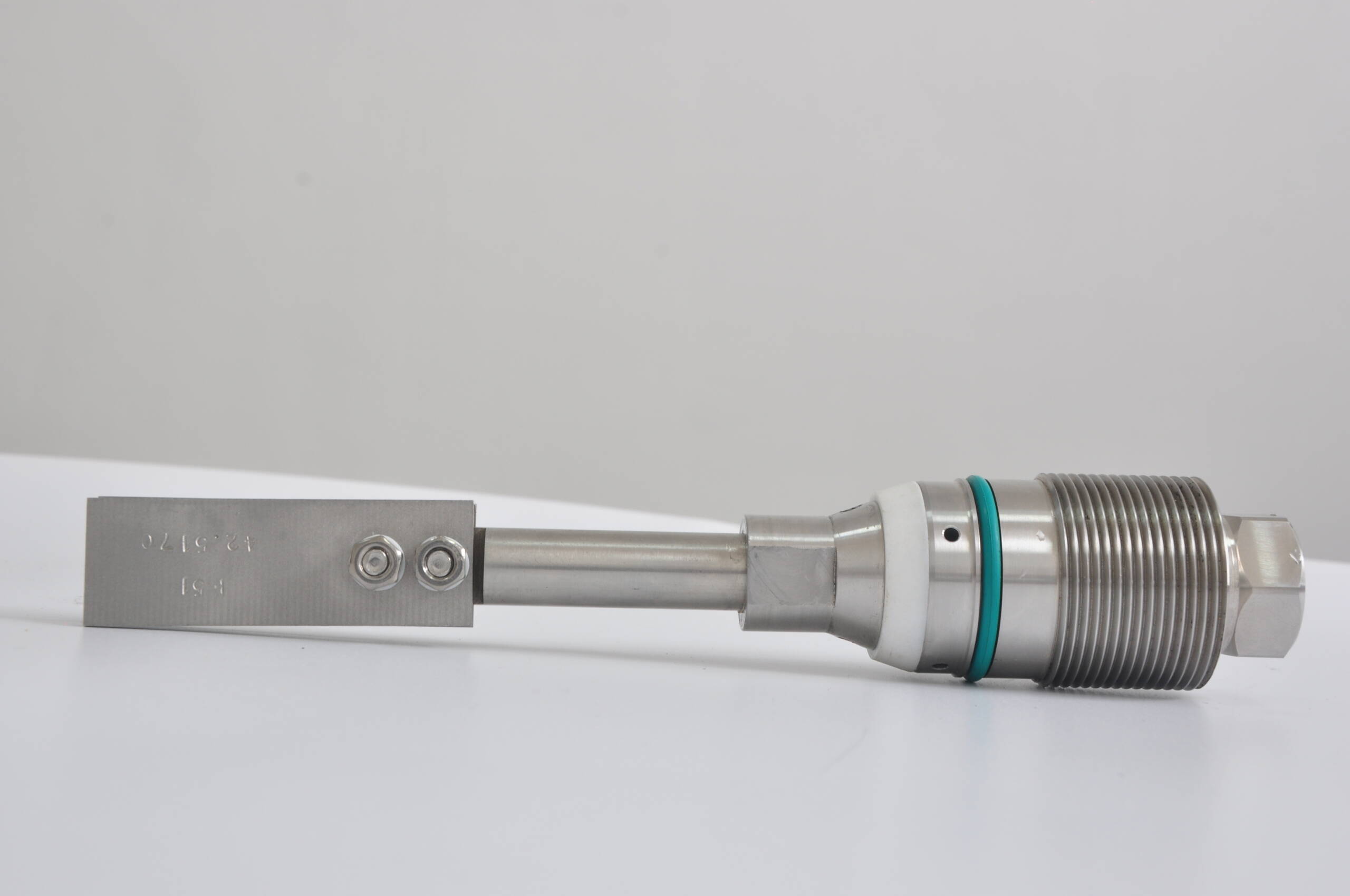

- Strip Coupons: These are the standard choice for most applications, featuring two mounting holes and a surface area of 4.65 square inches. They are ideal for general-purpose corrosion monitoring.
- Multihole Strip Coupons: Designed for use through narrow ports or with low-pressure access systems, these coupons have a smaller width and the same thickness but a reduced surface area of 2.65 square inches.

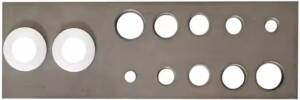

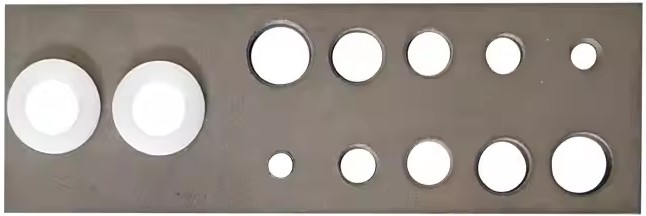

- Disc Coupons: Suited for stacked multiple disc monitoring applications, these circular coupons provide a compact alternative with an exposed surface area also measuring 2.65 square inches.
Enhanced Durability and Efficiency
To further enhance their utility, Pipeline Corrosion Coupon is available with various insulation options to match specific environmental conditions. Standard coupons come with Delrin insulation, suitable for temperatures up to 200°F. For higher temperature applications, materials such as Teflon, Rulon, and Ceramic are available, which can withstand temperatures up to 1472°F.
Benefits of Using EMT Corrosion Coupon
- Easy Operating and Installation.: Pipeline Corrosion Coupon are designed for straightforward installation and retrieval, making them user-friendly for field technicians.
- High Accuracy and Long Life.: Thanks to their precise manufacturing and robust materials, these coupons provide accurate corrosion data over long periods, reducing the need for frequent replacements.
- Cost-Effective Monitoring Solution.: With their low cost and high efficiency, EMT coupons offer an economical solution for ongoing corrosion monitoring, helping to optimize maintenance budgets and prevent unexpected failures.
4. Applications and Industries
1. Oil & Gas Industry
In the oil and gas sector, pipeline integrity is paramount due to the high risk associated with the transportation of hydrocarbons. Corrosion can lead to catastrophic failures, resulting in environmental damage and severe financial consequences. EMT Corrosion Coupon is used extensively for routine maintenance checks and corrosion rate monitoring, helping companies predict lifespan, plan maintenance, and avoid unplanned shutdowns. They are particularly useful in both upstream activities, such as drilling and production, and downstream processes, including refining and distribution.
2. Energy Sector
The energy sector, encompassing both traditional and renewable resources, relies on pipeline systems for the efficient transport of materials like natural gas, steam, and biofuels. Here, the corrosion coupons help monitor the effects of corrosive compounds and extreme conditions on pipeline materials, ensuring that energy production remains consistent and safe.
3. Mining and Metallurgy
Mining operations often involve the movement of corrosive slurries and other abrasive materials through pipelines. EMT Corrosion Coupons are critical in these environments to monitor material degradation. It can inform the maintenance schedule and help prevent pipeline breaches that could interrupt production or cause environmental hazards.
4. Construction and Building Materials
In the construction industry, particularly where pipelines work to transport water, waste, or other chemicals on large building sites, understanding corrosion dynamics can help extend the operational life of these essential systems. EMT’s solutions provide data to optimize the material selection and treatment processes, thereby enhancing the overall durability and reliability of construction projects.
5. Pipeline Pigging
Specialized in pipeline cleaning and maintenance, the pigging industry uses EMT Corrosion Coupon to assess the effectiveness of pigging operations and the overall condition of pipelines post-maintenance. This is crucial for ensuring that pipelines are free from deposits and corrosion, which could affect operational efficiency and safety.
6. Chemical Processing Industry
Chemical plants utilize pipelines extensively to transport raw materials, intermediates, and finished products. The corrosive nature of many chemicals demands continuous monitoring to prevent leaks that could pose significant safety and environmental risks. Pipeline Corrosion Coupon provide a measure of the corrosive impact on pipeline materials. It also aiding in the selection of appropriate corrosion inhibitors and pipeline materials.
