Introduction to the EMT Retractor Tool
The Retractor Tool EMT-WRTV is commonly used for pig indicators, chemical syringes, and corrosion coupons. It facilitates the dismantling process while the pipeline is operational, significantly reducing maintenance time and labor costs. Furthermore, our products are manufactured in accordance with international standards, ensuring compatibility with most standard accessories. The quality and cost-effectiveness of our tools have earned recognition from users. For more information about the Retractor Tool EMT-WRTV, please contact our experts who are ready to assist you.

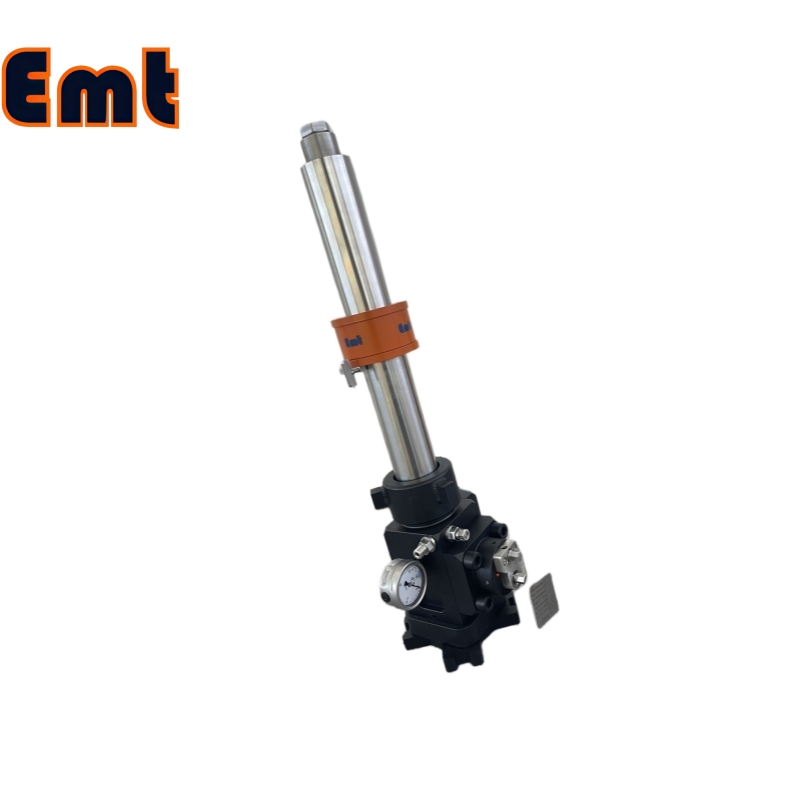

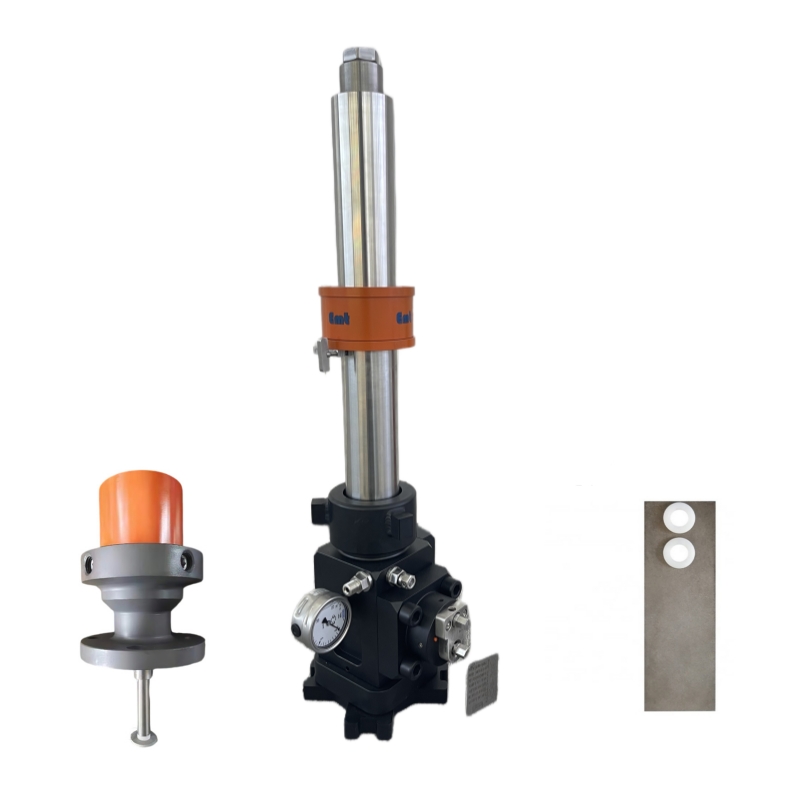

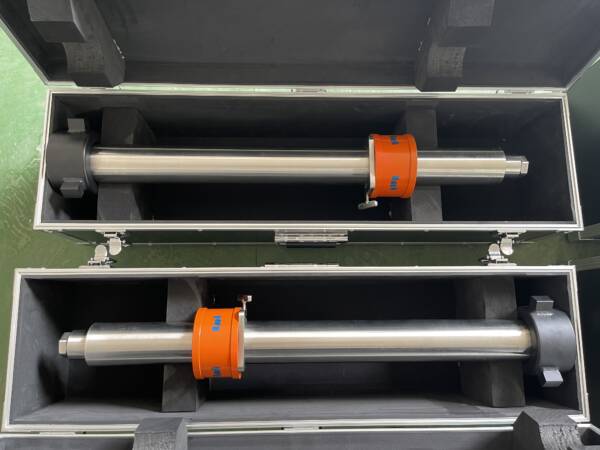

The EMT Retrieval Tool is a specialized tool designed for the retrieval and installation of corrosion coupons and probes under pressure. It stands out from other retrieval tools due to its lightweight design, ease of operation, and quick retrieval time. The entire installation process takes only about 15 minutes.
Not only is the EMT Retrieval Tool more affordable, but it also reduces the costs associated with corrosion monitoring. Some oil companies often opt for more costly and complex systems for ease of disassembly. The EMT Retractor Tool EMT-WRTV offers a more economical alternative for purchasing corrosion monitoring equipment.
Retractor Tool Parameters
| Letter | Description | Maximum Pipeline Size | ||
| 12″ | 24″ | 36″ | ||
| A | Retriever (mm) | 710 | 1000 | 1300 |
| B | Retriever and Service Valve (mm) | 985 | 1275 | 1575 |
| C | Stroke Available (mm) | 600 | 881 | 1184 |
| Weights (kg) | 25.4 | 27.6 | 30 | |
- Design Pressure: 2500 PSI (17.2 MPA), 6000 PSI (41.3 MPA)
- Design Temperature: -4℉ ~ 302℉ (-20℃ ~ 150℃), -15℉ ~ 400℉ (-26℃ ~ 204℃)
- Easy to use and cheap: EMT Retrieval Tool is simple to use, you can search “EMT Retrieval Tool” on YouTube and see how we replaced the corrosion coupon within 12 minutes.
The EMT Retrieval Tool is engineered to operate under high pressures with design ratings of 2500 PSI (17.2 MPA) and 6000 PSI (41.3 MPA). Besides, it can withstand a wide range of temperatures from -4℉ to 302℉ and -15℉ to 400℉. This tool is not only easy to use but also cost-effective. Therefore this makes it an ideal choice for efficient and rapid replacement of corrosion coupons. You can find demonstrations of its simplicity and speed online; notably, videos on YouTube actively show the replacement of a corrosion coupon in just 12 minutes. Additionally, this combination of high performance, durability, and user-friendliness significantly enhances the EMT Retrieval Tool, making it a valuable asset for maintaining pipeline integrity and effectively reducing downtime.
Retractor Tool With Double Valve and Single Service Valve
| Name | Mechanical Retrieval Tool with Single Service Valve | ||||||
| Max. Device Length (mm) | 150 | 240 | 350 | 425 | 640 | 920 | 1170 |
| Mechanical Retrieval Tool Length extended, including single valve | 1160 | 1340 | 1565 | 1710 | 2140 | 2700 | 3200 |
| Removal clearance with single valve | 1460 | 1640 | 1865 | 2010 | 2440 | 3000 | 3500 |
| Mechanical Retrieval Tool weight (kg) | 23.5 | 25.5 | 27.5 | 29.5 | 34 | 40 | 45.5 |
| Retriever kit approximate weight (kg) including single valve (13 kg) | 65 | 67 | 69 | 71 | 75 | 81 | 87 |
| Name | Mechanical Retrieval Tool with Single Service Valve | ||||||
| Max. Device Length (mm) | 150 | 240 | 350 | 425 | 640 | 920 | 1170 |
| Mechanical Retrieval Tool Length extended, including single valve | 1160 | 1340 | 1565 | 1710 | 2140 | 2700 | 3200 |
| Removal clearance with single valve | 1460 | 1640 | 1865 | 2010 | 2440 | 3000 | 3500 |
| Mechanical Retrieval Tool weight (kg) | 23.5 | 25.5 | 27.5 | 29.5 | 34 | 40 | 45.5 |
| Retriever kit approximate weight (kg) including single valve (13 kg) | 65 | 67 | 69 | 71 | 75 | 81 | 87 |

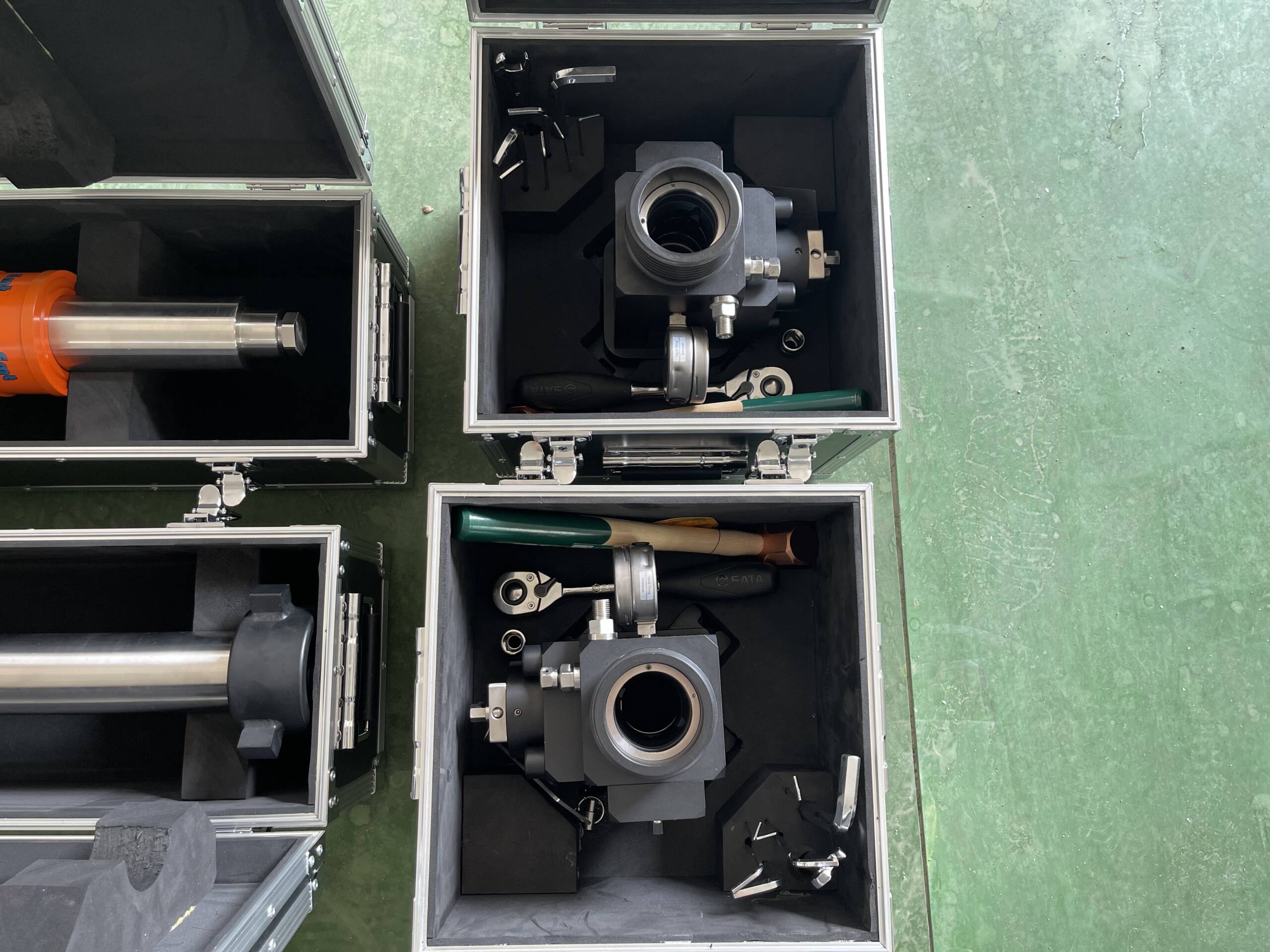

Equipment Structures
Hammer Nut: Connects the base to the Service Valve, featuring a PTFE coating.

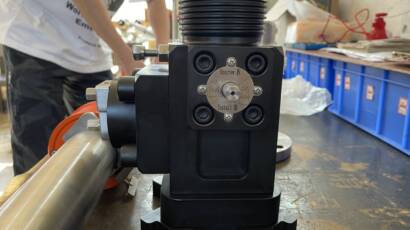

Service Valve: Attaches to the Retriever and is used for internal pressure adjustments of pressure removal tools, coated with PTFE.
Bleed Valve: Allows for the release of internal pressure from the pressure removal tool; made of stainless steel.
Bypass Valve: Ensures internal pressure balance within the pressure removal tool; constructed from stainless steel.
Adapter: Facilitates connection between corrosion coupons and the Retriever; manufactured in stainless steel.
Plug Drive: Utilized for the removal and installation of the drive plug on corrosion coupons; made of stainless steel.
Plug Lifter: Engages in the linkage between internal and external magnetic steel plugs; crafted from high-intensity magnetic steel.
Stop Block: Secures the Plug Lifter; composed of stainless steel.
Retriever: Connects to the gear plate valve to facilitate the lifting and installation of corrosion coupons; constructed from stainless steel.
